NSN 5365-00-010-2753
Part Details | MACHINE THREAD PLUG
5365-00-010-2753 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 4M1599, 5365-00-010-2753, 00-010-2753, 5365000102753, 000102753
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 01, 1968 | 00-010-2753 | 03801 ( PLUG, MACHINE THREAD ) |

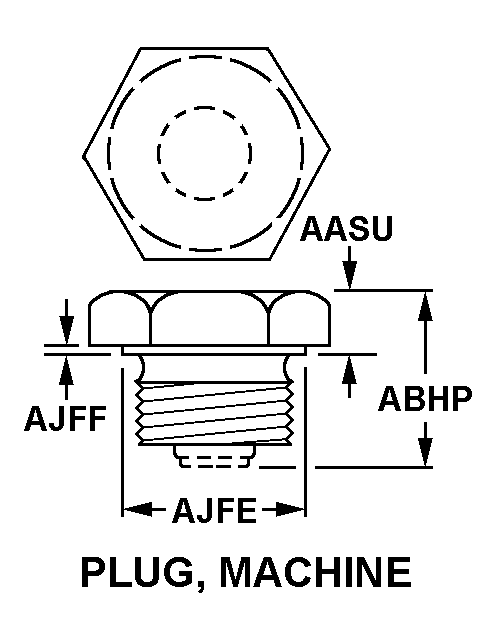

REFERENCE DRAWINGS & PICTURES
PLUG, MACHINE
Cross Reference | NSN 5365-00-010-2753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M1599 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 5365-00-010-2753
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLUG, MACHINE |
| HEAD HEIGHT | 0.438 INCHES NOMINAL |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| WASHER FACE DIAMETER | 0.688 INCHES NOMINAL |
| WASHER FACE THICKNESS | 0.188 INCHES NOMINAL |
