NSN 5365-00-008-6226
Part Details | SLEEVE SPACER
5365-00-008-6226 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Alternate Parts: 140191, 14019-1, 5365-00-008-6226, 00-008-6226, 5365000086226, 000086226
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 21, 1972 | 00-008-6226 | 13207 ( SPACER, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

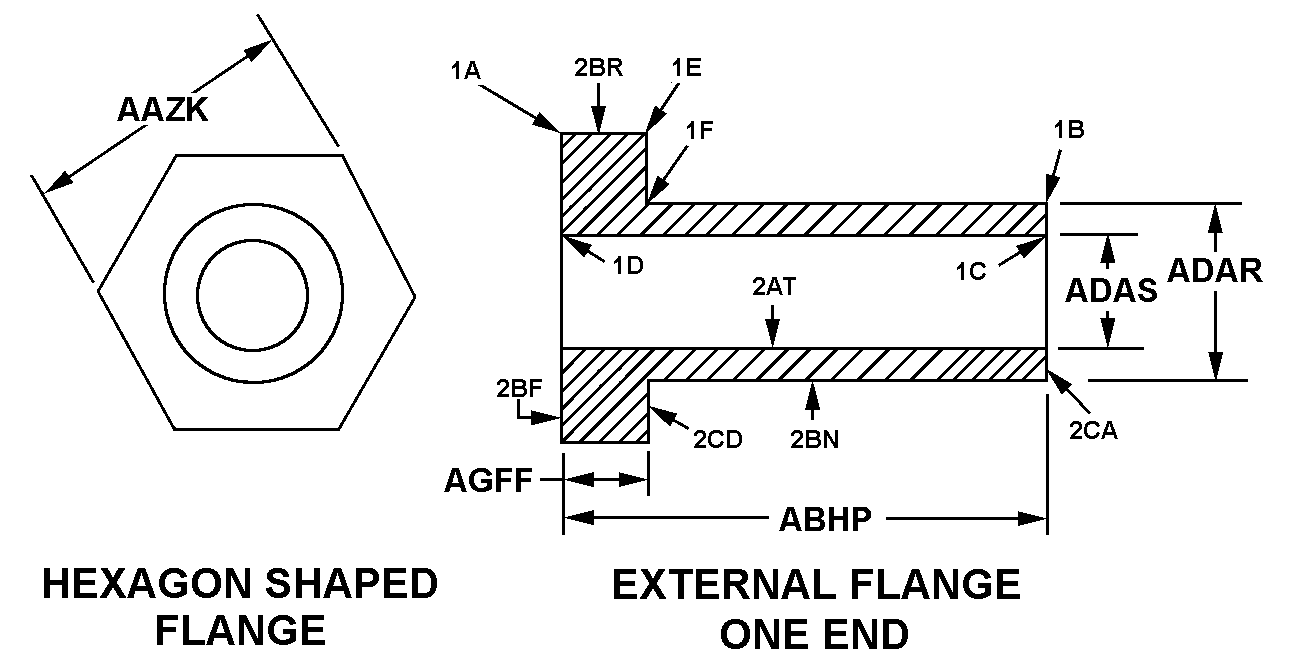

HEXAGON SHAPED FLANGE, EXTERNAL FLANGE ONE END
Cross Reference | NSN 5365-00-008-6226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14019-1 | 09344 | ROCKWELL COLLINS, INC.DBA RC DISPLAYS SYSTEMS |
Technical Data | NSN 5365-00-008-6226
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEXAGON SHAPED FLANGE, EXTERNAL FLANGE ONE END |
| WIDTH ACROSS FLATS | 0.3120 INCHES NOMINAL |
| OVERALL LENGTH | 0.2200 INCHES MINIMUM AND 0.2800 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.1600 INCHES MINIMUM AND 0.1750 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.1190 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0700 INCHES MINIMUM AND 0.1300 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | POWER SUPPLY,P/N 14280-9,B-52 |
