NSN 5360-00-005-8075
Part Details | TORSION HELICAL SPRING
5360-00-005-8075 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: G104605, G104-605, 5360-00-005-8075, 00-005-8075, 5360000058075, 000058075
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 23, 1972 | 00-005-8075 | 04228 ( SPRING, HELICAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES
SQUARE TYPE

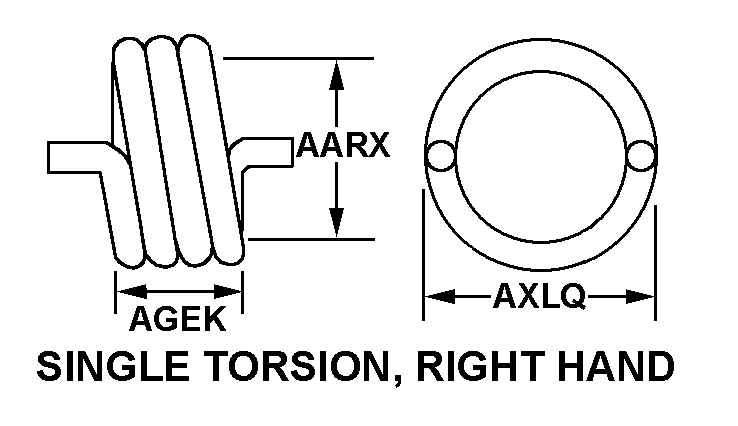

SINGLE TORSION RIGHT HAND
Cross Reference | NSN 5360-00-005-8075
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G104-605 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5360-00-005-8075
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.350 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| SPRING FREE LENGTH | 0.500 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.434 INCHES MINIMUM AND 0.458 INCHES MAXIMUM |
| CENTER SECTION WIDTH | 0.204 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.456 INCHES MINIMUM AND 0.458 INCHES MAXIMUM |
| COIL HELIX DIRECTION | L$G |
| CENTER STYLE | SQUARE TYPE |
| COIL QUANTITY | 4-51/64 |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL ANGLED TO CENTER SECTION AND END W/RH HELIX OF COIL ANGLED TO CENTER SECTION |
