NSN 5355-00-057-7989
Part Details | KNOB
5355-00-057-7989 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).
Alternate Parts: 102782, 5355-00-057-7989, 00-057-7989, 5355000577989, 000577989
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-057-7989 | 03263 ( KNOB ) |
REFERENCE DRAWINGS & PICTURES

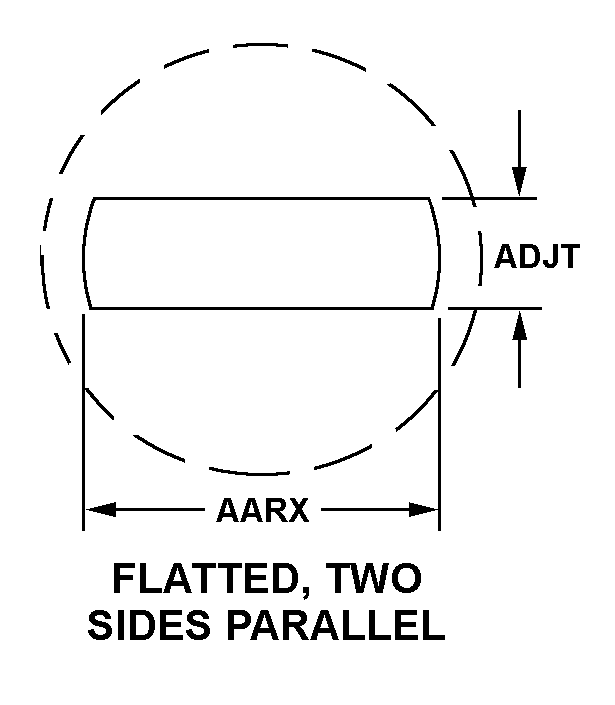

FLATTED, TWO SIDES PARALLEL
ROUND
Cross Reference | NSN 5355-00-057-7989
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102782 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
Technical Data | NSN 5355-00-057-7989
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL THICKNESS | 0.546 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 1 |
| SCREW DRIVE TYPE | SLOT |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.219 INCHES NOMINAL |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | FLATTED, TWO SIDES PARALLEL |
| INSIDE DIAMETER | 0.270 INCHES NOMINAL |
| OVERALL DEPTH | 0.468 INCHES NOMINAL |
| INSIDE WIDTH | 0.210 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| COLOR | BLACK |
| SURFACE TREATMENT | ANODIZE |
