NSN 5355-00-055-1829
Part Details | DIAL WINDOW
5355-00-055-1829 A piece of transparent material specifically designed to be placed directly in front of a dial or scale to protect it from foreign matter. It is cut to size and may include a frame. It may have an index line or other marking. See also WINDOW, OBSERVATION; and DIAL, SCALE.
Alternate Parts: 14922661, 1492266-1, 14922661, 1492266-1, AD5281550, 1492266, 5355-00-055-1829, 00-055-1829, 5355000551829, 000551829
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 06, 1967 | 00-055-1829 | 08194 ( WINDOW, DIAL ) |
REFERENCE DRAWINGS & PICTURES

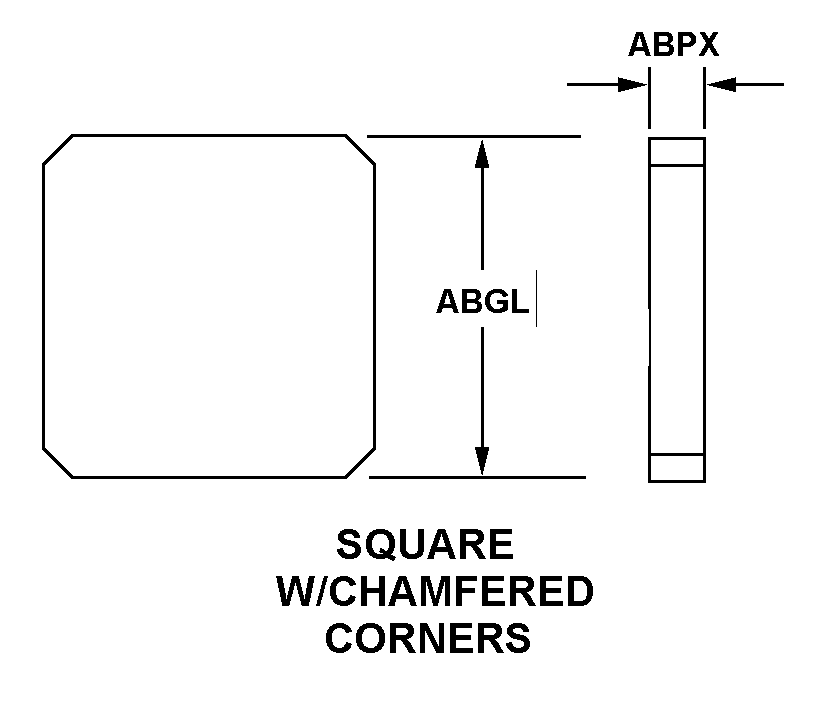

SQUARE W/CHAMFERED CORNERS
Cross Reference | NSN 5355-00-055-1829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1492266-1 | 96774 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 1492266-1 | 55972 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| AD5281550 | 27307 | J L M ELECTRONICS INCDBA PACK RITE COMPANY |
| 1492266 | 02097 | UTILITY TOOL AND MACHINE CO INC |
Technical Data | NSN 5355-00-055-1829
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| STYLE DESIGNATOR | SQUARE W/CHAMFERED CORNERS |
| WIDTH | 3.048 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | ATTACHMENT METHOD: PRESS-FIT |
| END ITEM IDENTIFICATION | INDICAT0R, DUAL SYNCHRO, AIRCRAFT ENGINE |
