NSN 5355-00-004-9946
Part Details | DIAL POINTER
5355-00-004-9946 An item intended to be mounted on or associated with a rotating shaft or similar device to determine relative position or definite dial and/or scale readings. Positioning may be indicated by the shape of the item or by a reference line thereon. Excludes CURSOR, INDICATOR and KNOB.
Alternate Parts: 22724340002, 2272434-0002, 22724340002, 2272434-0002, 5355-00-004-9946, 00-004-9946, 5355000049946, 000049946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 14, 1972 | 00-004-9946 | 08084 ( POINTER, DIAL ) |
REFERENCE DRAWINGS & PICTURES

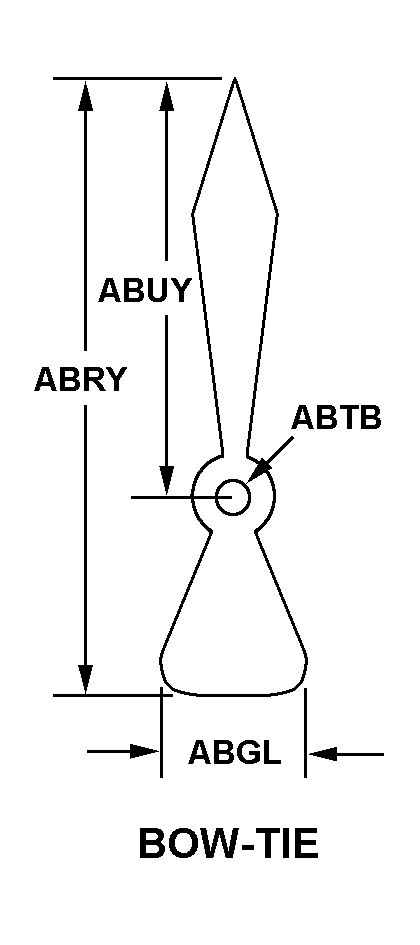

BOW-TIE
Cross Reference | NSN 5355-00-004-9946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2272434-0002 | 96774 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 2272434-0002 | 55972 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5355-00-004-9946
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BOW-TIE |
| MATERIAL TRANSPARENCY | OPAQUE |
| ATTACHMENT METHOD | CENTER HOLE |
