NSN 5345-00-584-4752
Part Details | RUBBING BRICK
5345-00-584-4752 A piece of abrasive designed to remove form marks and mold marks and to dress all kinds of concrete work.
Alternate Parts: BRICKRUBBING, BRICKRUBBING, 5345-00-584-4752, 00-584-4752, 5345005844752, 005844752
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-584-4752 | 05807 ( BRICK, RUBBING ) |

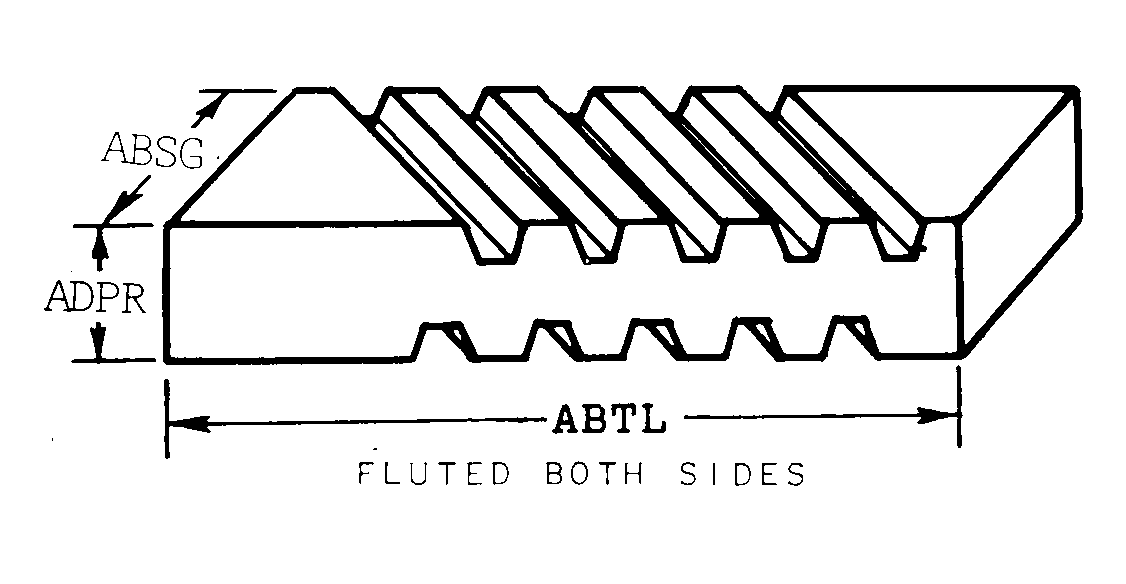

REFERENCE DRAWINGS & PICTURES
FLUTED BOTH SIDES
Cross Reference | NSN 5345-00-584-4752
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BRICKRUBBING | 10646 | CESIWID INC |
| BRICKRUBBING | 72819 | SANDVIK WIRE AND HEATING TECHNOLOGYCORPORATION |
Technical Data | NSN 5345-00-584-4752
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | SILICON CARBIDE |
| SCREEN GRIT SIZE DESIGNATOR | 20 |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 8.000 INCHES NOMINAL |
| BODY THICKNESS | 2.000 INCHES NOMINAL |
| BRICK STYLE | FLUTED BOTH SIDES |
