NSN 5342-00-020-2413
Part Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-020-2413 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Alternate Parts: 200176500, 200-1765-00, 150PL18, 150PL-18, 5342-00-020-2413, 00-020-2413, 5342000202413, 000202413
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-020-2413 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |
REFERENCE DRAWINGS & PICTURES

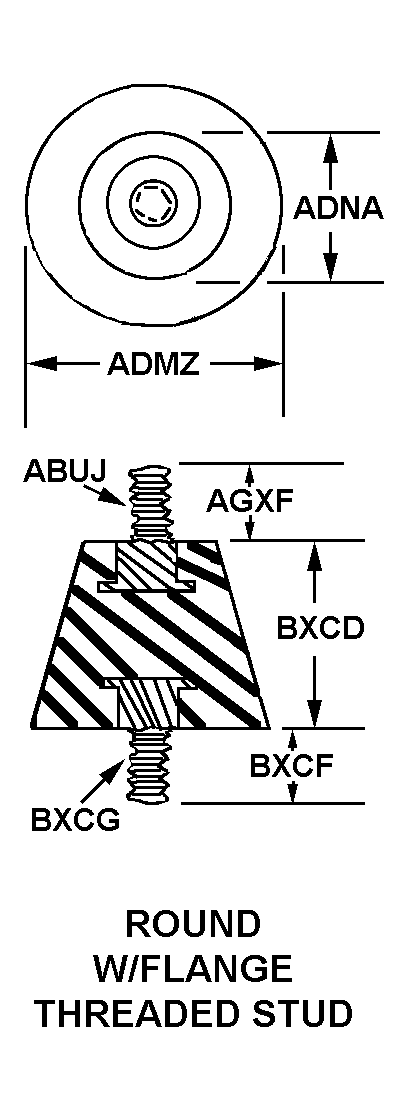

ROUND W/FLANGE THREADED STUD
Cross Reference | NSN 5342-00-020-2413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200-1765-00 | 95104 | ALCATEL-LUCENT HOLDINGS INC. |
| 150PL-18 | 76005 | LORD CORPORATIONDBA AEROSPACE DIVISION |
Technical Data | NSN 5342-00-020-2413
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 ROUND W/FLANGE THREADED STUD |
| INSIDE DIAMETER | 0.257 INCHES NOMINAL |
| FLANGE THICKNESS | 0.050 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.375 INCHES NOMINAL |
| FLANGE LENGTH | 1.750 INCHES NOMINAL |
| FLANGE WIDTH | 1.750 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 0.400 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.375 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.166 INCHES NOMINAL |
| HEIGHT | 0.620 INCHES NOMINAL |
| STATIC LOAD RATING | 18.0 POUNDS NOMINAL |
| DEFLECTION AT STATIC LOAD RATING | 0.062 INCHES NOMINAL |
| SPECIAL FEATURES | RESILIENT MATERIALS:RUBBER |
