NSN 5340-00-071-9408
Part Details | ACCESS COVER
5340-00-071-9408 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 1002M15P6, 1002M15P6, 5340-00-071-9408, 00-071-9408, 5340000719408, 000719408
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 20, 1967 | 00-071-9408 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES

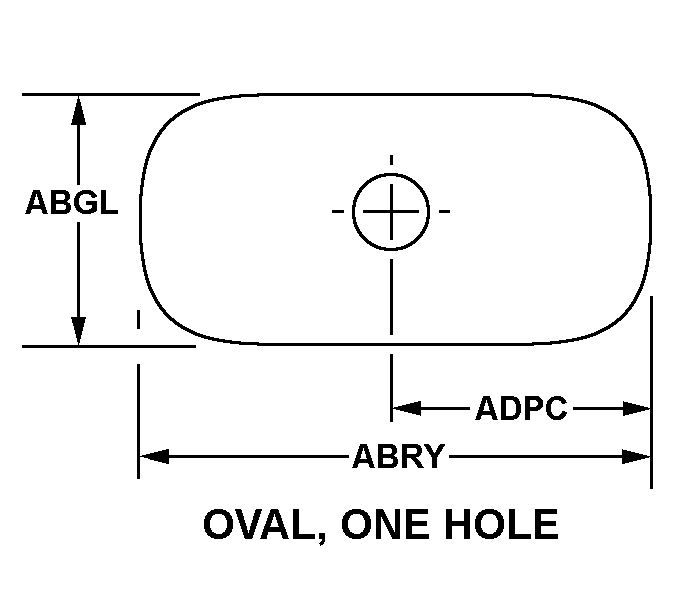

OVAL, ONE HOLE
UNTHREADED HOLE
Cross Reference | NSN 5340-00-071-9408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1002M15P6 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 1002M15P6 | D3309 | MTU AERO ENGINES AGDBA MTU DEUTSCHE AEROSPACE |
Technical Data | NSN 5340-00-071-9408
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | STEEL CORROSION RESISTING |
| PERIPHERAL SHAPE STYLE | OVAL, ONE HOLE |
| WIDTH | 0.750 INCHES NOMINAL |
| LENGTH | 2.820 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.890 INCHES NOMINAL |
| BODY THICKNESS | 0.057 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.430 INCHES NOMINAL |
