NSN 5340-00-009-7380
Part Details | ANGLE BRACKET
5340-00-009-7380 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 10162641, 5340-00-009-7380, 00-009-7380, 5340000097380, 000097380
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1972 | 00-009-7380 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
ANGLE

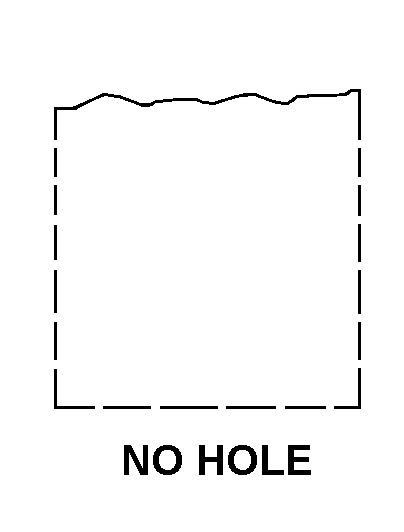

NO HOLE

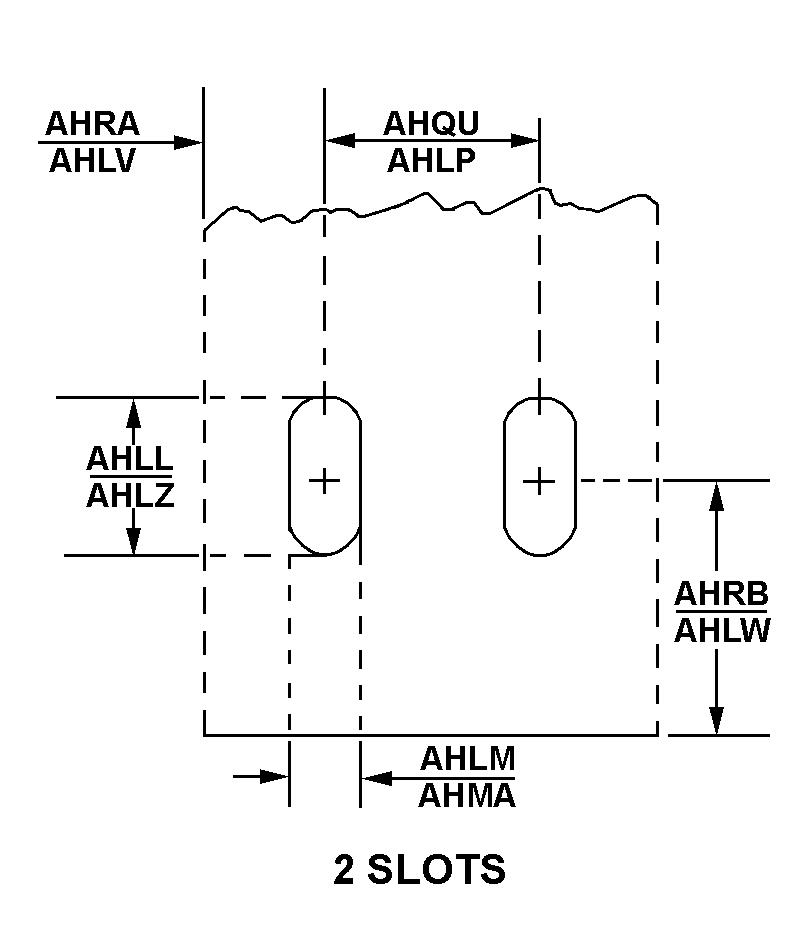

2 SLOTS
SQUARE
ANGLE
NO HOLE
2 SLOTS

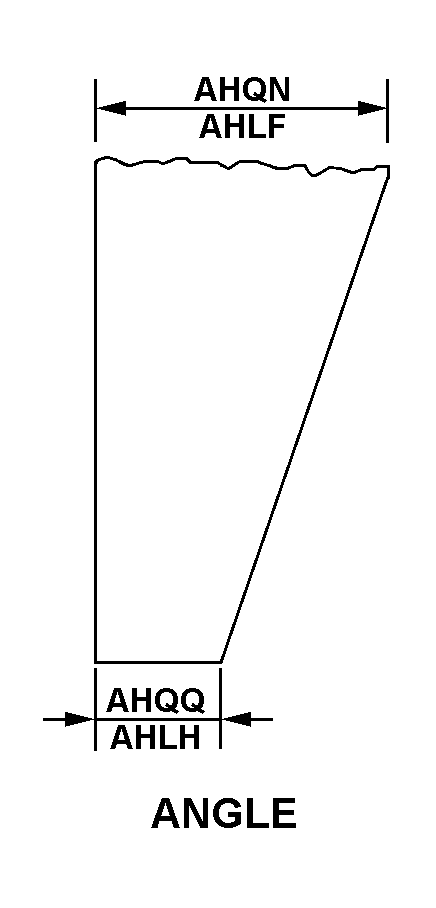

ANGLE
Cross Reference | NSN 5340-00-009-7380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10162641 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-009-7380
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 2.720 INCHES MINIMUM AND 2.780 INCHES MAXIMUM |
| SECOND LEG LENGTH | 3.150 INCHES MINIMUM AND 3.210 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | ANGLE |
| FIRST LEG WIDTH | 2.500 INCHES NOMINAL |
| FIRST LEG END WIDTH | 2.180 INCHES NOMINAL |
| SECOND LEG WIDTH | 3.030 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 2 SLOTS |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.970 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.810 INCHES NOMINAL |
| FIRST LEG SLOT WIDTH | 0.420 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | NO HOLE |
