NSN 5340-00-009-2467
Part Details | ROD END CONNECTOR
5340-00-009-2467 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Alternate Parts: 472P446C0067, 472P446C006-7, 472P446C0067, 472P446C006-7, 5340-00-009-2467, 00-009-2467, 5340000092467, 000092467
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 04, 1972 | 00-009-2467 | 03439 ( CONNECTOR, ROD END ) |
REFERENCE DRAWINGS & PICTURES

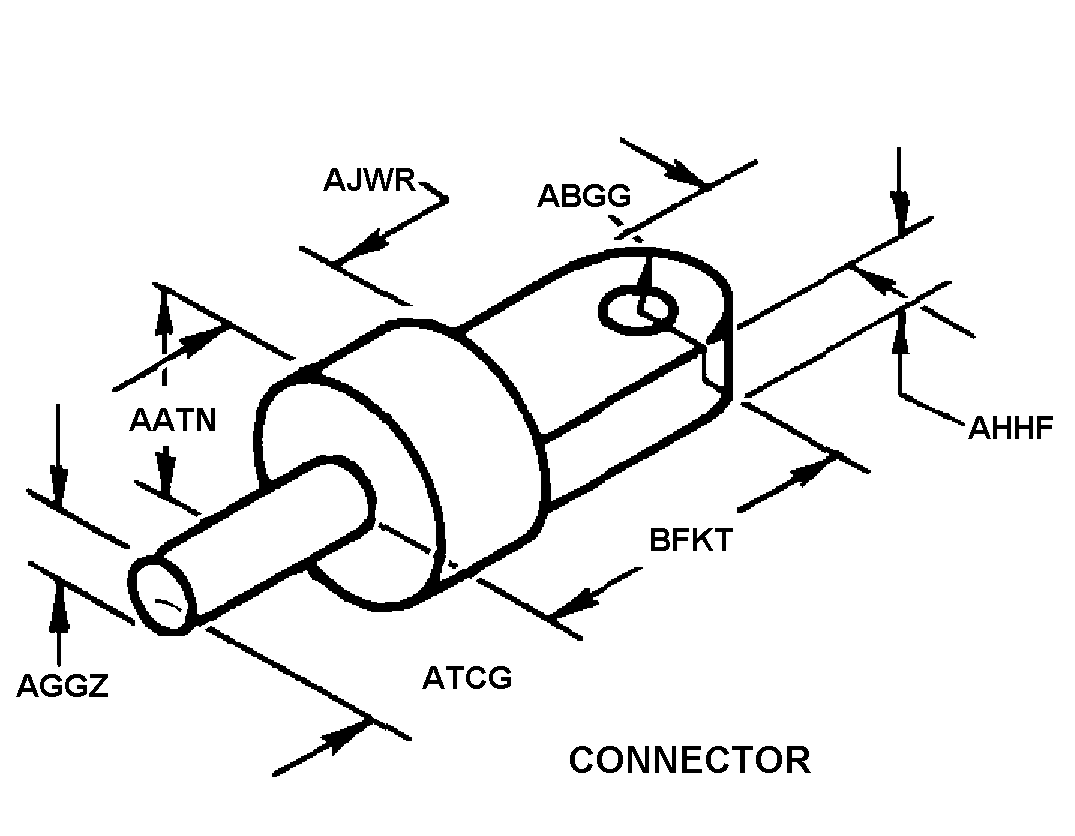

CONNECTOR
Cross Reference | NSN 5340-00-009-2467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 472P446C006-7 | 31218 | AMI INDUSTRIES, INC.DBA GOODRICH INTERIORS SPECIALTY |
| 472P446C006-7 | 51998 | UNIVERSAL PROPULSION COMPANY INCDBA GOODRICH DIV UNIVERSAL |
Technical Data | NSN 5340-00-009-2467
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONNECTOR |
| RADIUS | 0.155 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.239 INCHES MINIMUM AND 0.241 INCHES MAXIMUM |
| TONGUE WIDTH | 0.310 INCHES NOMINAL |
| TONGUE THICKNESS | 0.090 INCHES NOMINAL |
| SHOULDER LENGTH | 0.060 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 1.370 INCHES NOMINAL |
| BODY OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 0.350 INCHES NOMINAL |
