NSN 5340-00-009-0308
Part Details | RETAINING STRAP
5340-00-009-0308 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Alternate Parts: 2419280, 5340-00-009-0308, 00-009-0308, 5340000090308, 000090308
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 25, 1977 | 00-009-0308 | 05072 ( STRAP, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

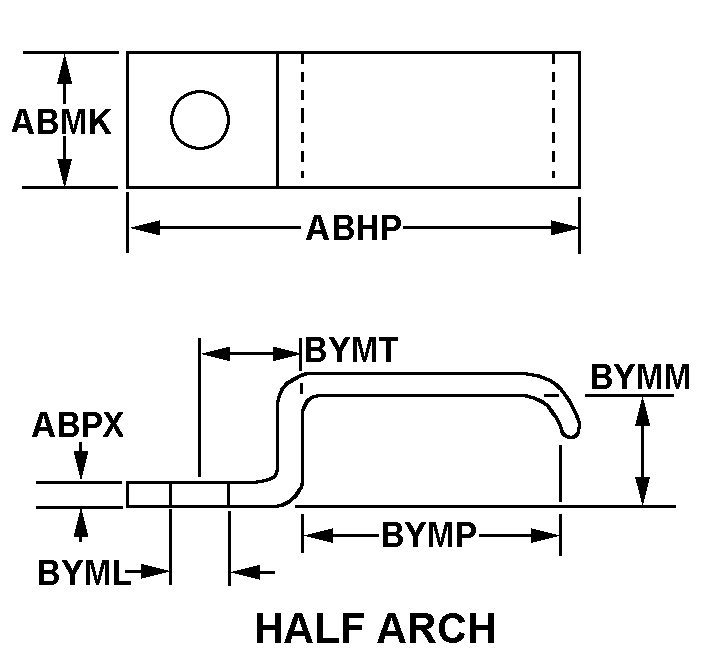

HALF ARCH
Cross Reference | NSN 5340-00-009-0308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2419280 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5340-00-009-0308
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | HALF ARCH |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.021 INCHES MINIMUM AND 0.041 INCHES MAXIMUM |
| MOUNTING HOLE SIZE | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| INSIDE DIAMETER/ARCH LENGTH | 0.688 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTER AND INSIDE EDGE OF ARCH | 0.500 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | INCLUDED |
| SPECIAL FEATURES | POLYURETHANE FOAM ELASTIC PAD BONDED TO SINSIDE OF ARCH |
