NSN 5340-00-008-5804

Part Details | ANGLE BRACKET

5340-00-008-5804 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.

Alternate Parts: ST9M380B110L, ST9M380B1-10L, ST9M30B110L, ST9M30B1-10L, 9M700B110L, 9M700B1-10L, 5340-00-008-5804, 00-008-5804, 5340000085804, 000085804

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53JUL 23, 197200-008-580416900 ( BRACKET, ANGLE )
REFERENCE DRAWINGS & PICTURES

CORNER RADIUS

BRACKET,ANGLE | 5340-00-008-5804, 000085804

TWO HOLES

BRACKET,ANGLE | 5340-00-008-5804, 000085804

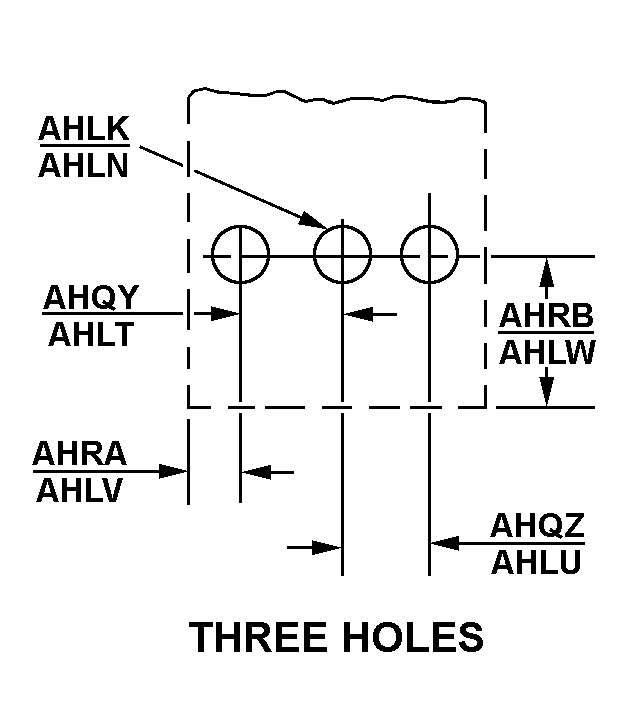

THREE HOLES

BRACKET,ANGLE | 5340-00-008-5804, 000085804

CORNER RADIUS

BRACKET,ANGLE | 5340-00-008-5804, 000085804

TWO HOLES

BRACKET,ANGLE | 5340-00-008-5804, 000085804

THREE HOLES

BRACKET,ANGLE | 5340-00-008-5804, 000085804

ANGLE

BRACKET,ANGLE | 5340-00-008-5804, 000085804
Cross Reference | NSN 5340-00-008-5804
Part Number Cage Code Manufacturer
ST9M380B1-10L76301BOEING COMPANY, THEDBA BOEING
ST9M30B1-10L76301BOEING COMPANY, THEDBA BOEING
9M700B1-10L76301BOEING COMPANY, THEDBA BOEING
Technical Data | NSN 5340-00-008-5804
Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024
MATERIAL DOCUMENT AND CLASSIFICATIONQQ-A-200 TO 3,T8511 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT CHROMATE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATIONMIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE
STYLE DESIGNATOR ANGLE
FIRST LEG LENGTH0.750 INCHES NOMINAL
SECOND LEG LENGTH0.750 INCHES MINIMUM AND 0.780 INCHES MAXIMUM
FIRST LEG THICKNESS0.064 INCHES NOMINAL
SECOND LEG THICKNESS0.064 INCHES NOMINAL
FIRST LEG ANGLE90.0 DEGREES NOMINAL
FIRST LEG STYLE CORNER RADIUS
FIRST LEG WIDTH1.500 INCHES MINIMUM AND 1.505 INCHES MAXIMUM
FIRST LEG CORNER RADIUS0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM
SECOND LEG WIDTH1.500 INCHES MINIMUM AND 1.505 INCHES MAXIMUM
SECOND LEG CORNER RADIUS0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM
FIRST LEG HOLE ARRANGEMENT STYLE THREE HOLES
FIRST LEG HOLE DIAMETER0.129 INCHES NOMINAL
FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH0.500 INCHES NOMINAL
FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH0.500 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH0.250 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH0.250 INCHES NOMINAL
SECOND LEG HOLE DIAMETER0.268 INCHES MINIMUM AND 0.271 INCHES MAXIMUM
SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH1.000 INCHES NOMINAL
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM
SECOND LEG RELATIONSHIP TO FIRST LEG NOT IDENTICAL
SECOND LEG STYLE CORNER RADIUS
SECOND LEG HOLE ARRANGEMENT STYLE TWO HOLES
SPECIAL FEATURESNUT 1.000 IN.,ALLOY STEEL
