NSN 5340-00-008-5711
Part Details | ANGLE BRACKET
5340-00-008-5711 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 6868669, 5340-00-008-5711, 00-008-5711, 5340000085711, 000085711
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 23, 1972 | 00-008-5711 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES

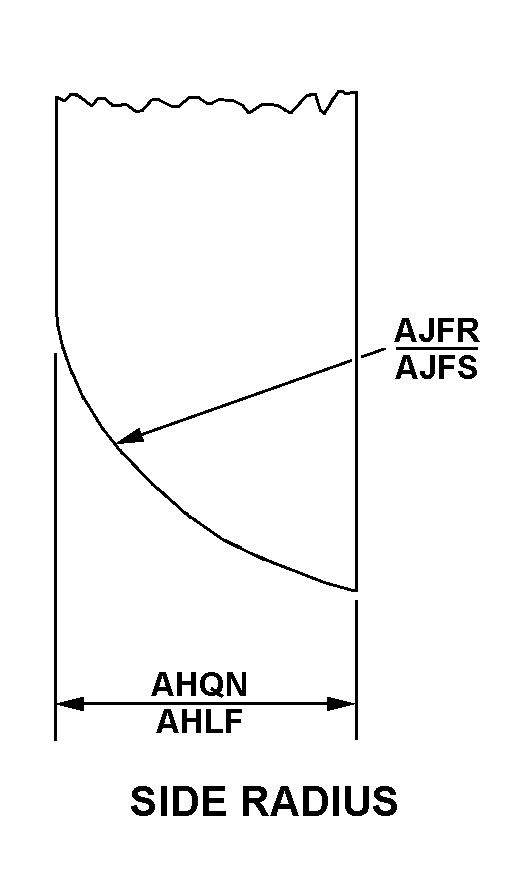

SIDE RADIUS
CORNER RADIUS
TWO HOLES
SIDE RADIUS
CORNER RADIUS
TWO HOLES
ANGLE
Cross Reference | NSN 5340-00-008-5711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6868669 | 73342 | ALLISON TRANSMISSION, INC. |
Technical Data | NSN 5340-00-008-5711
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 347 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5512 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 0.428 INCHES NOMINAL |
| SECOND LEG LENGTH | 0.730 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | CORNER RADIUS |
| FIRST LEG WIDTH | 2.455 INCHES NOMINAL |
| FIRST LEG CORNER RADIUS | 0.280 INCHES NOMINAL |
| SECOND LEG WIDTH | 2.455 INCHES NOMINAL |
| SECOND LEG SIDE RADIUS | 0.280 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.279 INCHES MINIMUM AND 0.288 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.000 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.727 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.279 INCHES MINIMUM AND 0.288 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.895 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.280 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | SIDE RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | TWO HOLES |
