NSN 5340-00-007-6343
Part Details | BUTT HINGE
5340-00-007-6343 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Alternate Parts: 5340000076343, 5340000076343, 10904270, 5340-00-007-6343, 00-007-6343, 5340000076343, 000076343
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 06, 1972 | 00-007-6343 | 22894 ( HINGE, BUTT ) |

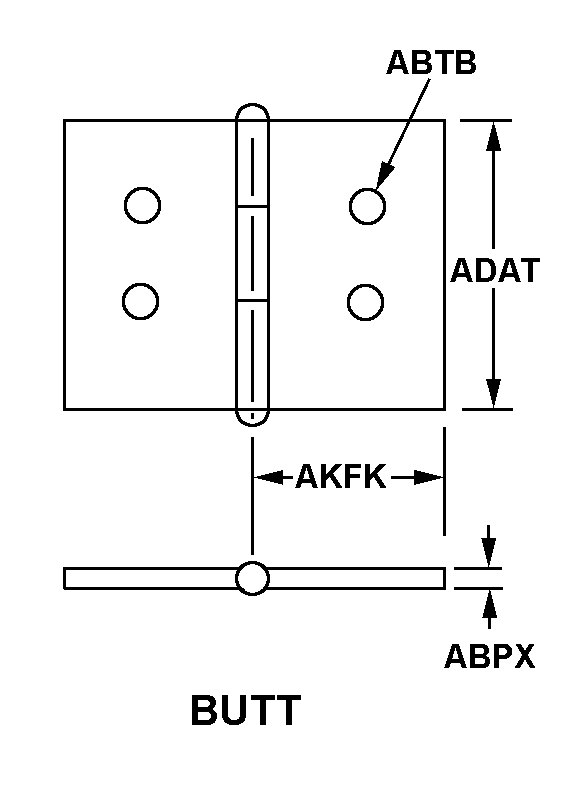

REFERENCE DRAWINGS & PICTURES
BUTT
Cross Reference | NSN 5340-00-007-6343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340000076343 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5340000076343 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10904270 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-007-6343
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, QQ-S-698, COMP 1008 THRU 1020 BODY AND STEEL, QQ-W-461, COMP 1010 THRU 1020 PIN |
| SURFACE TREATMENT AND LOCATION | CADMIUM, QQ-P-416, TYPE 2 BODY AND ZINC, QQ-Z-325, TYPE 2 BODY |
| STYLE DESIGNATOR | BUTT |
| MATERIAL THICKNESS | 0.060 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 1.000 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 4 |
| MOUNTING HOLE QUANTITY | 4 |
| PERFORMANCE TYPE | NOT RATED |
