NSN 5340-00-006-4630
Part Details | RETAINING STRAP
5340-00-006-4630 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Alternate Parts: MBEU38524, 5340-00-006-4630, 00-006-4630, 5340000064630, 000064630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 30, 1972 | 00-006-4630 | 05072 ( STRAP, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

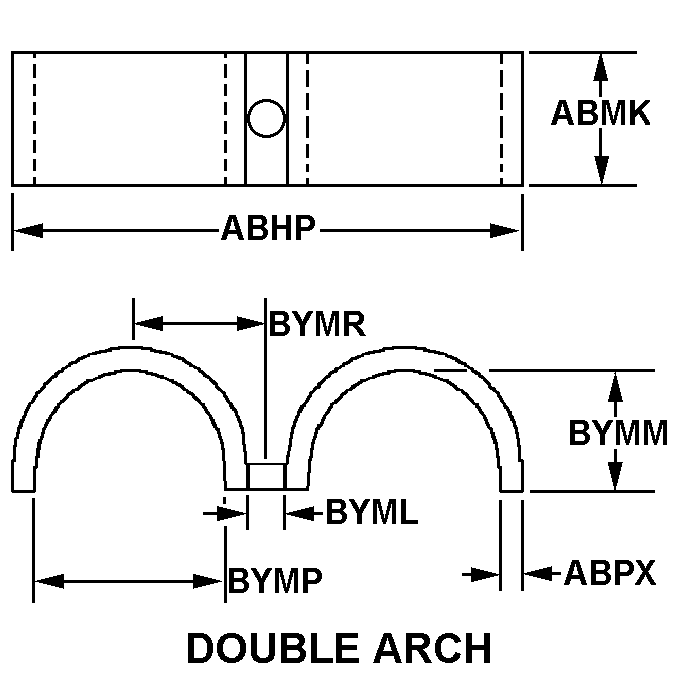

DOUBLE ARCH
Cross Reference | NSN 5340-00-006-4630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MBEU38524 | U1604 | MARTIN BAKER AIRCRAFT CO LTDDBA MARTIN-BAKER |
Technical Data | NSN 5340-00-006-4630
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | DOUBLE ARCH |
| OVERALL LENGTH | 1.262 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.193 INCHES NOMINAL |
| INSIDE DIAMETER/ARCH LENGTH | 0.206 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN ARCH AND MOUNTING HOLE | 0.315 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
