NSN 5340-00-004-4046
Part Details | PLUG BUTTON
5340-00-004-4046 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Alternate Parts: SS51051K2915, SS51051, SS51051K2215, SS51051K2915, SS51051K2915, SS-51051-K2915, 5340-00-004-4046, 00-004-4046, 5340000044046, 000044046
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 09, 1972 | 00-004-4046 | 11251 ( BUTTON, PLUG ) |
REFERENCE DRAWINGS & PICTURES

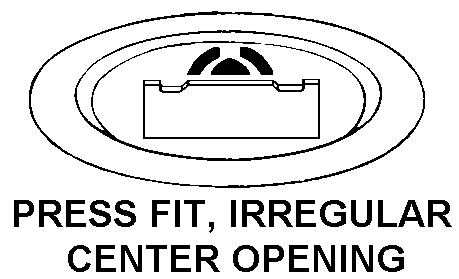

PRESS FIT, IRREGULAR CENTER OPENING
Cross Reference | NSN 5340-00-004-4046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS51051K2915 | 0ZJZ0 | AMERICAN ENGINEERED COMPONENTS |
| SS51051 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| SS51051K2215 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| SS51051K2915 | 83058 | TRW ASSEMBLIES AND FASTENERS GROUPFASTENERS DIV |
| SS-51051-K2915 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-00-004-4046
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 0 PRESS FIT, IRREGULAR CENTER OPENING |
| HEAD HEIGHT | 0.062 INCHES NOMINAL |
| OVERALL HEIGHT | 0.359 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| PRONG QUANTITY | 8 |
| HOLE ACCOMMODATION DIAMETER | 0.469 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.083 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | W/S:HELICOPTER, UH-60A/UH-60D; AIRCRAFT, HERCULES KC-130; HELICOPTER, MH-53E; AIRCRAFT, HERCULES C-130; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC- |
