NSN 5340-00-003-5402
Part Details | ANGLE BRACKET
5340-00-003-5402 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 4194481, 419448-1, 5340-00-003-5402, 00-003-5402, 5340000035402, 000035402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 07, 1972 | 00-003-5402 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES
SQUARE

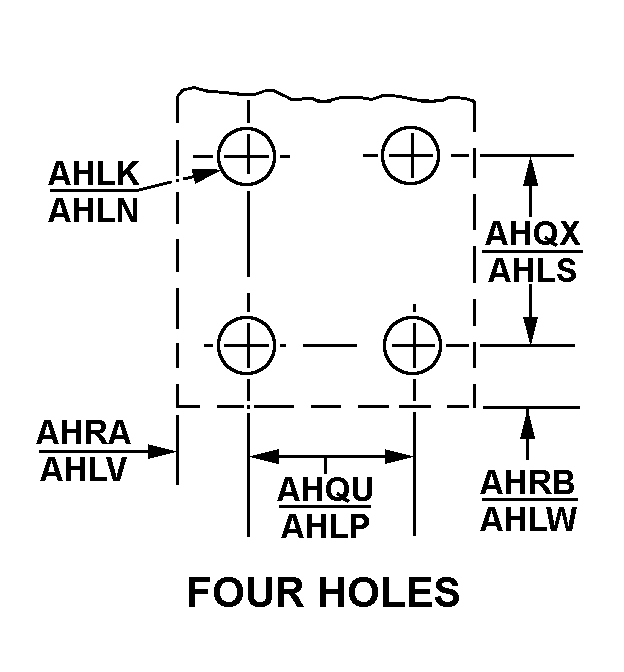

FOUR HOLES
SQUARE
FOUR HOLES
ANGLE
Cross Reference | NSN 5340-00-003-5402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 419448-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 5340-00-003-5402
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ENAMEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-15130 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 2.000 INCHES NOMINAL |
| SECOND LEG LENGTH | 2.750 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.125 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.125 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | SQUARE |
| FIRST LEG WIDTH | 2.500 INCHES NOMINAL |
| SECOND LEG WIDTH | 2.500 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.173 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 2.000 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 2.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.250 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.250 INCHES NOMINAL |
| SECOND LEG STYLE | SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | FOUR HOLES |
