NSN 5325-00-255-6245
Part Details | SNAP FASTENER STUD
5325-00-255-6245 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: MS2797749, MS27977-49, 5325-00-255-6245, 00-255-6245, 5325002556245, 002556245
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 24, 1973 | 00-255-6245 | 16550 ( STUD, SNAP FASTENER ) |

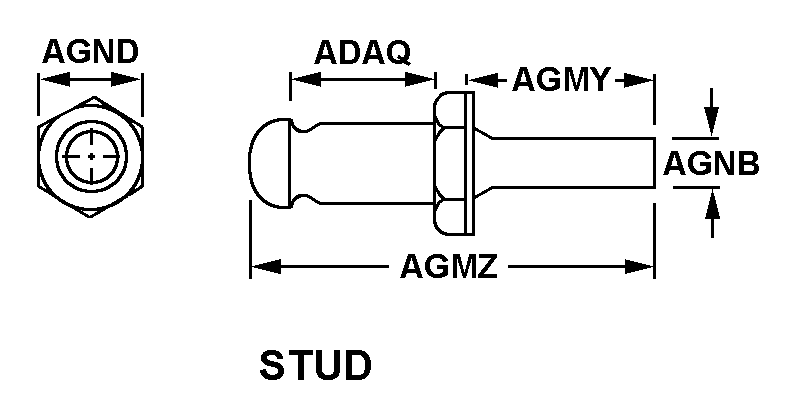

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-255-6245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27977-49 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5325-00-255-6245
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| BODY LENGTH | 0.250 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| STUD SHANK LENGTH | 0.609 INCHES MINIMUM AND 0.672 INCHES MAXIMUM |
| STUD OVERALL LENGTH | 1.125 INCHES NOMINAL |
| STUD SHANK DIAMETER | 0.190 INCHES NOMINAL |
| STUD BASE WIDTH ACROSS FLATS | 0.344 INCHES NOMINAL |
| STUD RETENTION METHOD | SCREW BASE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190 FORMING |
