NSN 5325-00-239-0648
Part Details | SNAP FASTENER POST
5325-00-239-0648 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: AN22735B, AN227-35B, MS279846B, MS27984-6B, 5325-00-239-0648, 00-239-0648, 5325002390648, 002390648
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-239-0648 | 16558 ( POST, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

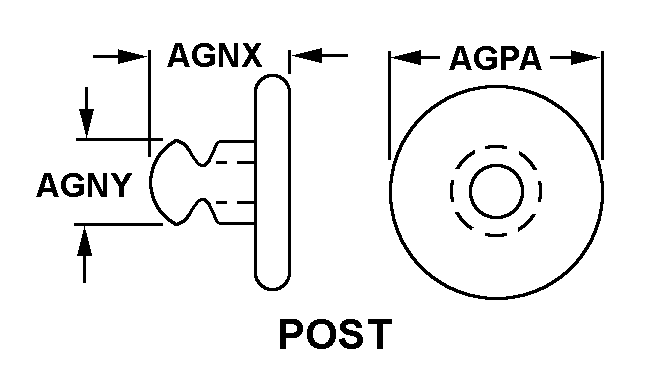

POST
Cross Reference | NSN 5325-00-239-0648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-35B | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27984-6B | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5325-00-239-0648
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.281 INCHES NOMINAL |
| POST HEAD DIAMETER | 0.125 INCHES NOMINAL |
| POST BASE DIAMETER | 0.375 INCHES NOMINAL |
