NSN 5325-00-205-5137
Part Details | RETAINING RING
5325-00-205-5137 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 1A5803, 9528, 5325-00-205-5137, 00-205-5137, 5325002055137, 002055137
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-205-5137 | 07623 ( RING, RETAINING ) |
REFERENCE DRAWINGS & PICTURES
ROUND

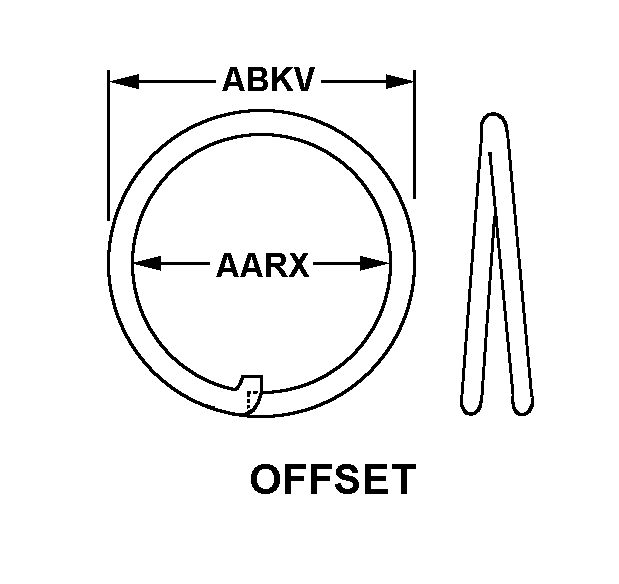

OFFSET
Cross Reference | NSN 5325-00-205-5137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1A5803 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 9528 | 30076 | HYSTER-YALE GROUP, INC. |
Technical Data | NSN 5325-00-205-5137
| Characteristic | Specifications |
|---|---|
| STRENGTH RATING | 220.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | OFFSET |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| USAGE DESIGN | EXTERNAL |
| MATERIAL HARDNESS RATING | 42.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM |
| INSIDE DIAMETER | 2.094 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.3347 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.1205 INCHES NOMINAL |
