NSN 5325-00-202-1579
Part Details | POSITIVE LOCK STUD
5325-00-202-1579 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Alternate Parts: 872640, 5325-00-202-1579, 00-202-1579, 5325002021579, 002021579
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-202-1579 | 18014 ( STUD, POSITIVE LOCK ) |
REFERENCE DRAWINGS & PICTURES
STUD HEAD

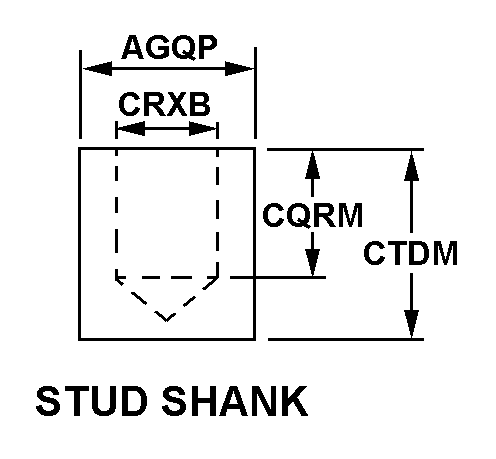

STUD SHANK
Cross Reference | NSN 5325-00-202-1579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 872640 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5325-00-202-1579
| Characteristic | Specifications |
|---|---|
| POSITIVE LOCK STUD HEAD STYLE | STUD HEAD |
| HEAD DIAMETER | 0.313 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.186 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.288 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.262 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.031 INCHES NOMINAL |
| END OVERALL LENGTH | 0.612 INCHES NOMINAL |
| POSITIVE LOCK STUD SHANK STYLE | STUD SHANK |
| SHANK MAJOR DIAMETER | 0.312 INCHES NOMINAL |
| STUD SHANK HOLE DEPTH | 0.312 INCHES NOMINAL |
| STUD SHANK HOLE DIAMETER | 0.187 INCHES NOMINAL |
| STUD SHANK OVERALL HEIGHT | 0.356 INCHES NOMINAL |
