NSN 5325-00-139-7213
Part Details | RETAINING RING
5325-00-139-7213 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 5365001397213, 5365001397213, SMC4139197, SMC413919-7, 5325-00-139-7213, 00-139-7213, 5325001397213, 001397213
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 18, 1971 | 00-139-7213 | 07623 ( RING, RETAINING ) |

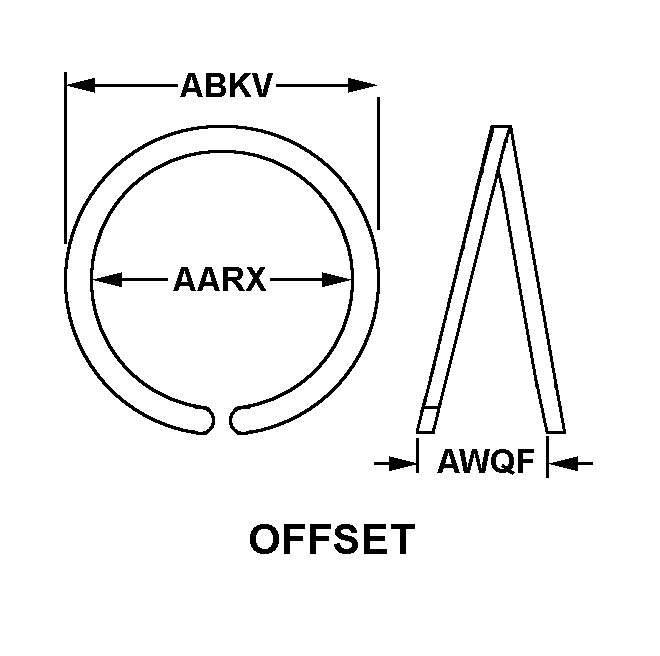

REFERENCE DRAWINGS & PICTURES
ROUND
OFFSET
Cross Reference | NSN 5325-00-139-7213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5365001397213 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5365001397213 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| SMC413919-7 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5325-00-139-7213
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | OFFSET |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| USAGE DESIGN | EXTERNAL |
| SURFACE TREATMENT | PASSIVATE |
| INSIDE DIAMETER | 0.515 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.607 INCHES NOMINAL |
| END PLAY TAKEUP | 0.096 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.046 INCHES NOMINAL |
