NSN 5325-00-134-3530
Part Details | SNAP FASTENER CLINCH PLATE
5325-00-134-3530 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Alternate Parts: C233, 7392993, 5325-00-134-3530, 00-134-3530, 5325001343530, 001343530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 18, 1969 | 00-134-3530 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |

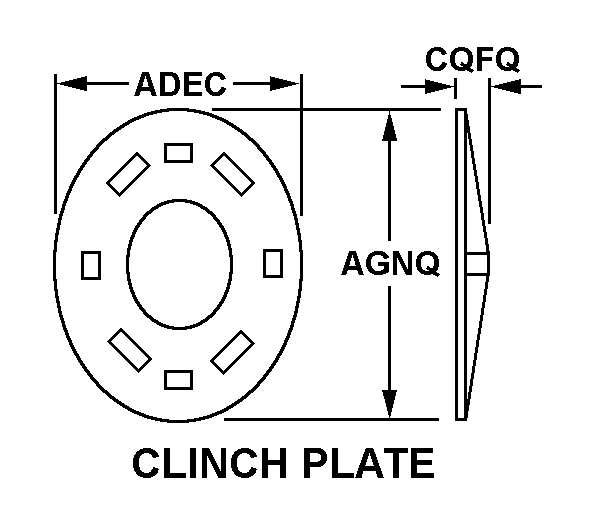

REFERENCE DRAWINGS & PICTURES
CLINCH PLATE
Cross Reference | NSN 5325-00-134-3530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C233 | 57771 | EDWIN B. STIMPSON COMPANY, INC. |
| 7392993 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5325-00-134-3530
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER CLINCH PLATE STYLE | CLINCH PLATE |
| PLATE WIDTH | 0.875 INCHES NOMINAL |
| PLATE LENGTH | 1.187 INCHES NOMINAL |
| PLATE OVERALL HEIGHT | 0.075 INCHES NOMINAL |
