NSN 5325-00-116-6217
Part Details | LOCK PIN FASTENER STUD
5325-00-116-6217 A metallic postlike fastening device, having a body on one end which is usually round in cross section, and a hole drilled perpendicular to the axis for insertion of a lock pin to securely fasten inspection covers, plates, cowling, or the like. The opposite end has mounting facilities in the form of a flange, plain shank, or threaded shank. May include a grommet.
Alternate Parts: 4G13678101A, 4G13678-101A, 5325-00-116-6217, 00-116-6217, 5325001166217, 001166217
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 30, 1968 | 00-116-6217 | 18531 ( STUD, LOCK PIN FASTENER ) |

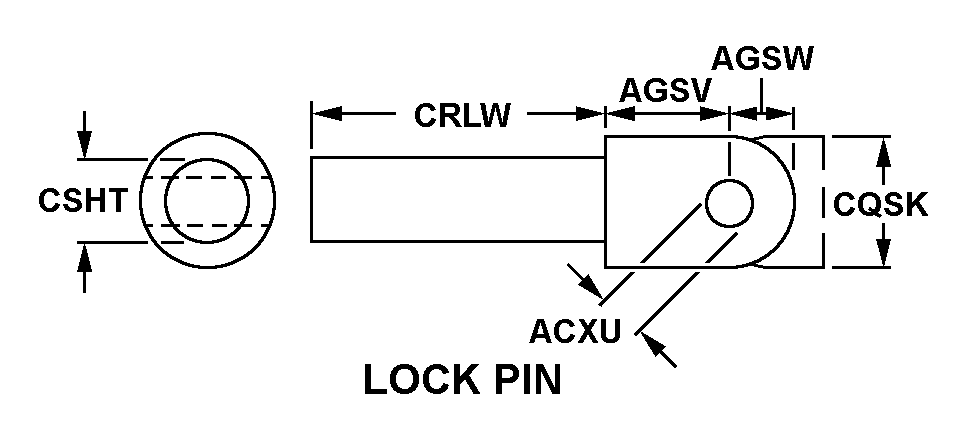

REFERENCE DRAWINGS & PICTURES
LOCK PIN
Cross Reference | NSN 5325-00-116-6217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4G13678-101A | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5325-00-116-6217
| Characteristic | Specifications |
|---|---|
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.562-18 UNF |
| FASTENER STYLE | LOCK PIN |
| PINHOLE DIAMETER | 0.2490 INCHES MINIMUM AND 0.2505 INCHES MAXIMUM |
| LENGTH FROM BODY SHOULDER TO HOLE CENTER | 0.875 INCHES NOMINAL |
| LENGTH FROM BODY HOLE CENTER TO BODY END | 0.375 INCHES NOMINAL |
| STUD BODY DIAMETER | 0.7478 INCHES MINIMUM AND 0.7488 INCHES MAXIMUM |
| FASTENER STUD SHANK LENGTH | 5.150 INCHES NOMINAL |
| FASTENER STUD SHANK DIAMETER | 0.440 INCHES NOMINAL |
