NSN 5325-00-111-3806
Part Details | TURNLOCK FASTENER EJECTOR SPRING
5325-00-111-3806 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.
Alternate Parts: 713278001, 7132780-01, 5325-00-111-3806, 00-111-3806, 5325001113806, 001113806
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 23, 1973 | 00-111-3806 | 18424 ( EJECTOR SPRING, TURNLOCK FASTENER ) |

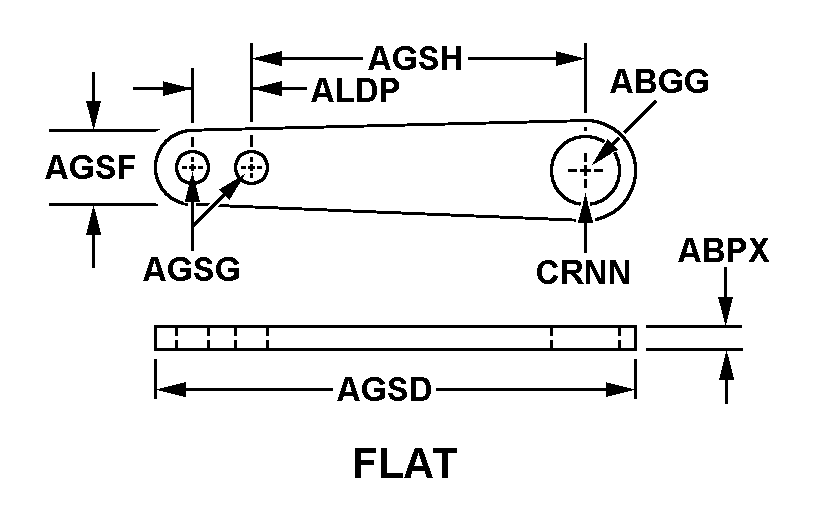

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 5325-00-111-3806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7132780-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Technical Data | NSN 5325-00-111-3806
| Characteristic | Specifications |
|---|---|
| EJECTOR SPRING STYLE | FLAT |
| RADIUS | 0.300 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| SPRING OVERALL LENGTH | 1.270 INCHES NOMINAL |
| SPRING WIDTH | 0.440 INCHES NOMINAL |
| SPRING MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| DISTANCE FROM GROMMET HOLE CENTER TO MOUNTING HOLE CENTER | 0.750 INCHES NOMINAL |
| EJECTOR SPRING HOLE DIAMETER | 0.203 INCHES NOMINAL |
