NSN 5325-00-106-4918
Part Details | PANEL FASTENER INSERT
5325-00-106-4918 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Alternate Parts: S106D101, S106D10-1, S106D101, S106D10-1, S106D10321, S106D1032-1, 5325-00-106-4918, 00-106-4918, 5325001064918, 001064918
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 15, 1968 | 00-106-4918 | 37444 ( INSERT, PANEL FASTENER ) |
REFERENCE DRAWINGS & PICTURES

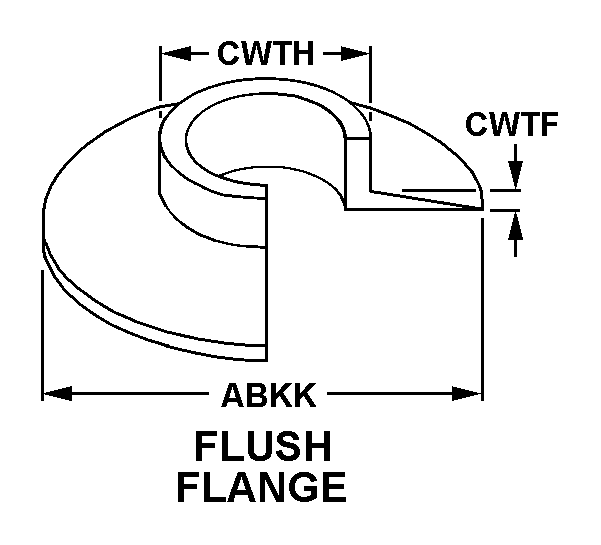

FLUSH FLANGE
Cross Reference | NSN 5325-00-106-4918
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S106D10-1 | 83324 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| S106D10-1 | 29372 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| S106D1032-1 | 29372 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
Technical Data | NSN 5325-00-106-4918
| Characteristic | Specifications |
|---|---|
| INSERT STYLE | FLUSH FLANGE |
| FLANGE DIAMETER | 0.625 INCHES NOMINAL |
| FLANGE THICKNESS | 0.023 INCHES NOMINAL |
| BODY DIAMETER | 0.341 INCHES NOMINAL |
| HOLE TYPE | PLAIN |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.281 INCHES NOMINAL |
| FEATURES PROVIDED | GROMMET |
