NSN 5325-00-103-2924
Part Details | RETAINING RING
5325-00-103-2924 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 243950, A2231364, A22313-64, 69642, 5325-00-103-2924, 00-103-2924, 5325001032924, 001032924
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 07, 1968 | 00-103-2924 | 07623 ( RING, RETAINING ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

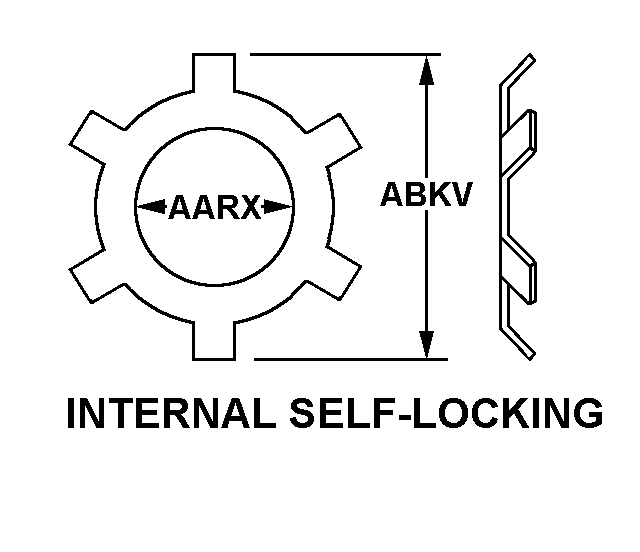

INTERNAL SELF-LOCKING
Cross Reference | NSN 5325-00-103-2924
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 243950 | 06853 | BENDIX COMMERCIAL VEHICLE SYSTEMSLLC |
| A22313-64 | 46717 | PETTIBONE LLC |
| 69642 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
Technical Data | NSN 5325-00-103-2924
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | INTERNAL SELF-LOCKING |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| USAGE DESIGN | INTERNAL |
| SURFACE TREATMENT | PHOSPHATE |
| INSIDE DIAMETER | 0.232 INCHES MINIMUM AND 0.242 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |
| MAJOR THICKNESS | 0.009 INCHES MINIMUM AND 0.011 INCHES MAXIMUM |
