NSN 5325-00-103-0717
Part Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-103-0717 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Alternate Parts: F7, 5325-00-103-0717, 00-103-0717, 5325001030717, 001030717
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 05, 1968 | 00-103-0717 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

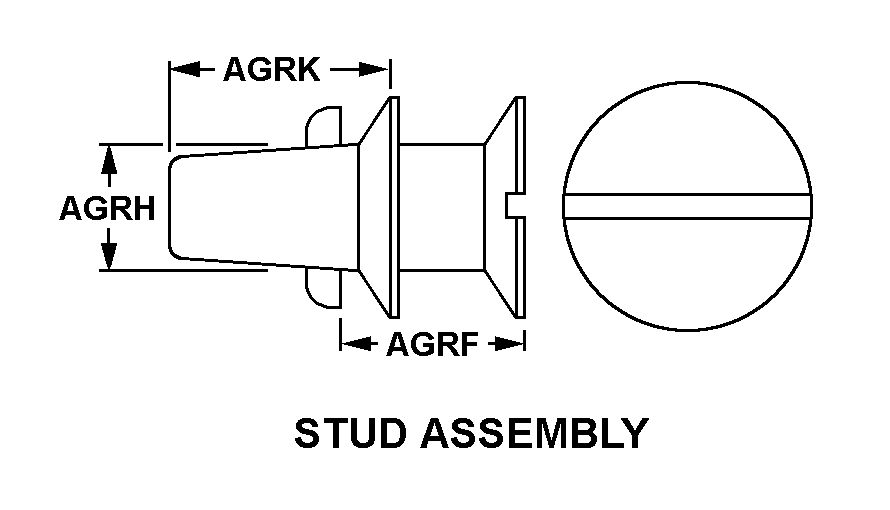

REFERENCE DRAWINGS & PICTURES
FLAT COUNTERSUNK
STUD ASSEMBLY
Cross Reference | NSN 5325-00-103-0717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F7 | 82240 | SIMMONS FASTENER CORPAN AMFAST CORP |
Technical Data | NSN 5325-00-103-0717
| Characteristic | Specifications |
|---|---|
| TURNLOCK STUD HEAD STYLE | FLAT COUNTERSUNK |
| DIAMETER | 0.718 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.468 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
| EYELET LENGTH | 0.812 INCHES NOMINAL |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.060 INCHES MINIMUM AND 0.259 INCHES MAXIMUM |
