NSN 5325-00-098-9361
Part Details | TRIM SPRING TENSION FASTENER
5325-00-098-9361 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Alternate Parts: 346599, 3465-99, 2053231, SS49074, 5325-00-098-9361, 00-098-9361, 5325000989361, 000989361
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-098-9361 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |

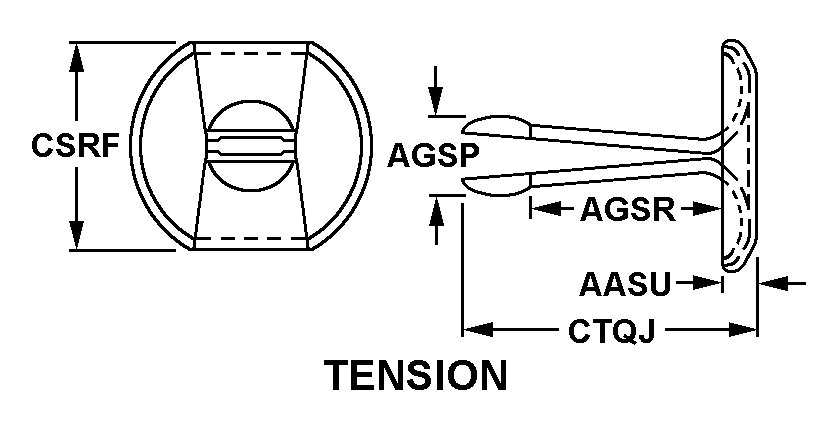

REFERENCE DRAWINGS & PICTURES
TENSION
Cross Reference | NSN 5325-00-098-9361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3465-99 | 72653 | GC/WALDOM INC |
| 2053231 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| SS49074 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-098-9361
| Characteristic | Specifications |
|---|---|
| FASTENER STYLE | TENSION |
| HEAD HEIGHT | 0.040 INCHES NOMINAL |
| PRONG DIAMETER | 0.156 INCHES NOMINAL |
| LENGTH FROM HEAD TO SHOULDER | 0.450 INCHES NOMINAL |
| FASTENER OUTSIDE DIAMETER | 0.188 INCHES NOMINAL |
| FASTENER OVERALL LENGTH | 0.625 INCHES NOMINAL |
