NSN 5325-00-097-9086
Part Details | TURNLOCK FASTENER STUD
5325-00-097-9086 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Alternate Parts: 6825289067, 682-528-9067, 2951007700, 295100-7-700, 5325-00-097-9086, 00-097-9086, 5325000979086, 000979086
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 31, 1968 | 00-097-9086 | 18421 ( STUD, TURNLOCK FASTENER ) |
REFERENCE DRAWINGS & PICTURES
STUD SHANK

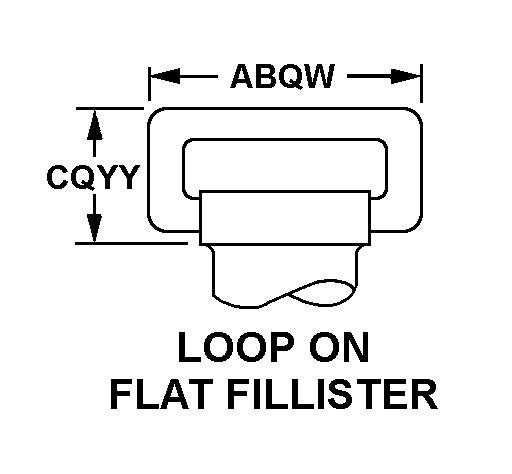

LOOP ON FLAT FILLISTER
Cross Reference | NSN 5325-00-097-9086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 682-528-9067 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 295100-7-700 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
Technical Data | NSN 5325-00-097-9086
| Characteristic | Specifications |
|---|---|
| TURNLOCK STUD SHANK STYLE | STUD SHANK |
| GRIP LENGTH | 0.887 INCHES MINIMUM AND 0.897 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.262 INCHES MINIMUM AND 0.267 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | LOOP ON FLAT FILLISTER |
| HEAD LENGTH | 1.375 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.938 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.691 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
