NSN 5325-00-081-6688
Part Details | POSITIVE LOCK STUD
5325-00-081-6688 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Alternate Parts: 2262512, 5325-00-081-6688, 00-081-6688, 5325000816688, 000816688
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 11, 1967 | 00-081-6688 | 18014 ( STUD, POSITIVE LOCK ) |
REFERENCE DRAWINGS & PICTURES

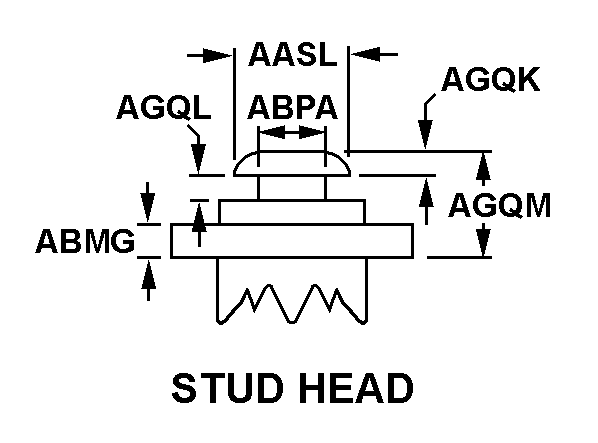

STUD HEAD

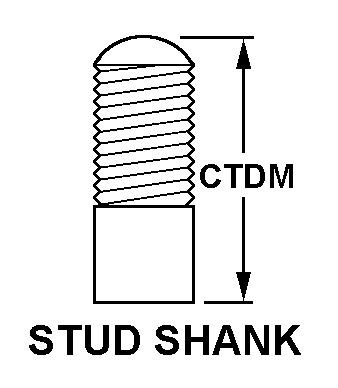

STUD SHANK
Cross Reference | NSN 5325-00-081-6688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2262512 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5325-00-081-6688
| Characteristic | Specifications |
|---|---|
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| POSITIVE LOCK STUD HEAD STYLE | STUD HEAD |
| HEAD DIAMETER | 0.188 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.031 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.125 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.130 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.045 INCHES NOMINAL |
| END OVERALL LENGTH | 0.406 INCHES NOMINAL |
| POSITIVE LOCK STUD SHANK STYLE | STUD SHANK |
| STUD SHANK OVERALL HEIGHT | 0.200 INCHES NOMINAL |
