NSN 5325-00-073-9130
Part Details | RETAINING RING
5325-00-073-9130 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 53874053, 53-87405-3, 5325-00-073-9130, 00-073-9130, 5325000739130, 000739130
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-073-9130 | 07623 ( RING, RETAINING ) |
REFERENCE DRAWINGS & PICTURES
ROUNDED CORNERS

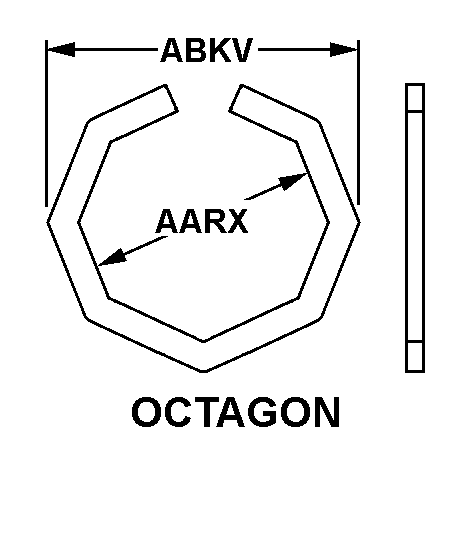

OCTAGON
Cross Reference | NSN 5325-00-073-9130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53-87405-3 | 76301 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5325-00-073-9130
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | OCTAGON |
| CROSS-SECTIONAL SHAPE STYLE | ROUNDED CORNERS |
| USAGE DESIGN | INTERNAL |
| SURFACE TREATMENT | CADMIUM |
| INSIDE DIAMETER | 4.156 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.580 INCHES NOMINAL |
| MAJOR THICKNESS | 0.041 INCHES NOMINAL |
| SPECIAL FEATURES | STRAIN RELIEVE AFTER FORMING PER MAC P.S.15129 FSCM 76301 |
