NSN 5325-00-064-6311
Part Details | NONMETALLIC GROMMET
5325-00-064-6311 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Alternate Parts: 10885154, 5325-00-064-6311, 00-064-6311, 5325000646311, 000646311
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-064-6311 | 33729 ( GROMMET, NONMETALLIC ) |

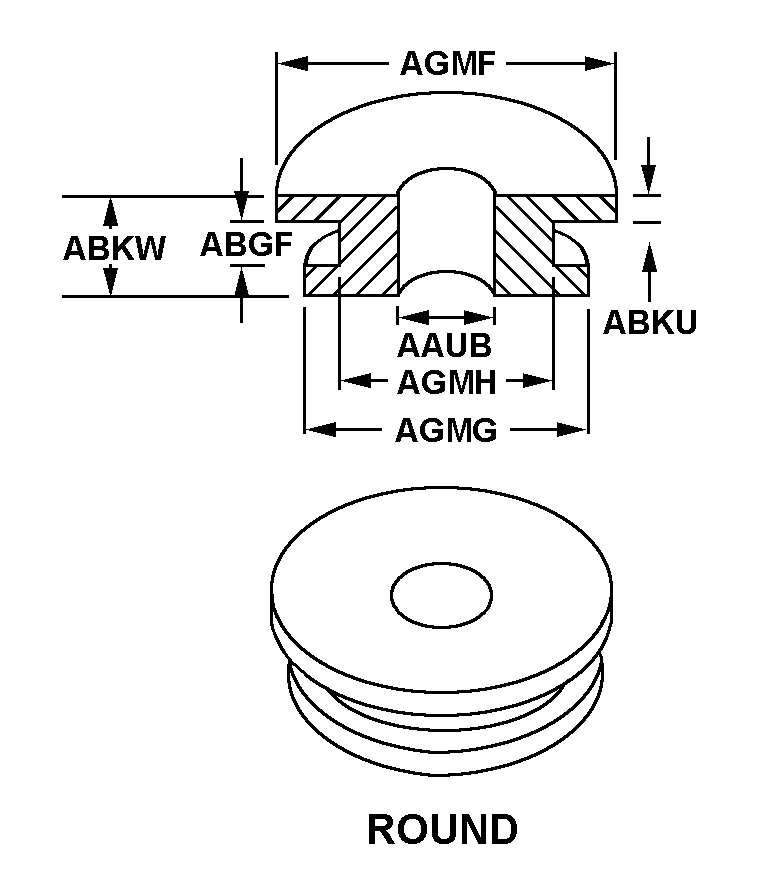

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5325-00-064-6311
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10885154 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5325-00-064-6311
| Characteristic | Specifications |
|---|---|
| GROMMET STYLE | ROUND |
| HOLE DIAMETER | 0.300 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| GROOVE WIDTH | 0.800 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.260 INCHES NOMINAL |
| OVERALL HEIGHT | 1.200 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.880 INCHES NOMINAL |
| SMALL FLANGE OUTSIDE DIAMETER | 0.430 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GROOVE OUTSIDE DIAMETER | 0.350 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SPLIT |
