NSN 5325-00-050-9447
Part Details | METALLIC GROMMET
5325-00-050-9447 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Alternate Parts: 4002N2, 4002-N2, 4002N2, 5325-00-050-9447, 00-050-9447, 5325000509447, 000509447
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 16, 1967 | 00-050-9447 | 06314 ( GROMMET, METALLIC ) |
REFERENCE DRAWINGS & PICTURES

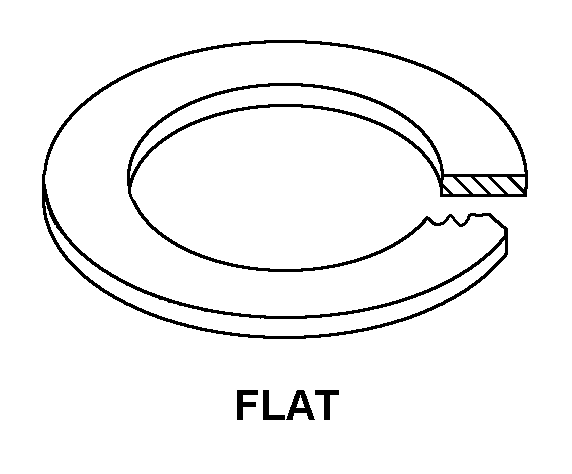

FLAT
STRAIGHT ROUND TYPE
FLANGE
Cross Reference | NSN 5325-00-050-9447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002-N2 | D0680 | ALCOA FASTENING SYSTEMSFAIRCHILDFASTENERS EUROPE - CAMLOC |
| 4002N2 | 71286 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
Technical Data | NSN 5325-00-050-9447
| Characteristic | Specifications |
|---|---|
| BARREL STYLE | STRAIGHT ROUND TYPE |
| BARREL HEIGHT | 0.130 INCHES MINIMUM AND 0.132 INCHES MAXIMUM |
| BARREL OUTSIDE DIAMETER | 0.467 INCHES MINIMUM AND 0.473 INCHES MAXIMUM |
| FLANGE STYLE | FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.617 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| WASHER STYLE | FLAT |
