NSN 5325-00-027-8719
Part Details | TURNLOCK FASTENER RECEPTACLE
5325-00-027-8719 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Alternate Parts: 1050645P1, 19466801, 1946680-1, 19466801, 1946680-1, 810AS22241, 810AS2224-1, GR520F6A, 03A0901, 03A090-1, 8849188, PC990981, PC99098-1, 0191803, 019180-3, 5718FA3ACNC, 5718-FA3-ACNC, URFA3, 1153891, 115389-1, 10243909, 202571, 202-57-1, URFA3, URF-A3, 5325-00-027-8719, 00-027-8719, 5325000278719, 000278719
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-027-8719 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |
REFERENCE DRAWINGS & PICTURES

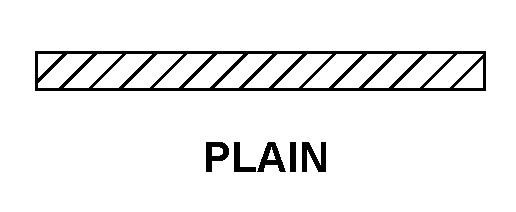

PLAIN

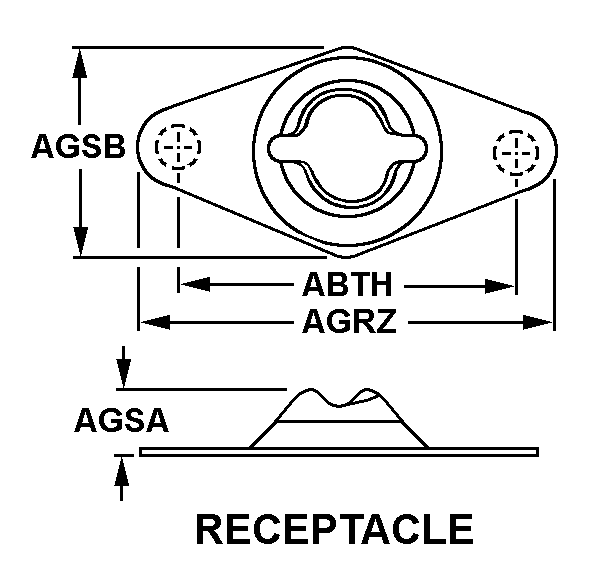

RECEPTACLE
Cross Reference | NSN 5325-00-027-8719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1050645P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 1946680-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 1946680-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| 810AS2224-1 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| GR520F6A | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 03A090-1 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 8849188 | 19203 | PICATINNY ARSENAL |
| PC99098-1 | 09344 | ROCKWELL COLLINS, INC.DBA RC DISPLAYS SYSTEMS |
| 019180-3 | 17981 | SCI SYSTEMS INC |
| 5718-FA3-ACNC | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
| URFA3 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
| 115389-1 | 27934 | TRACOR AEROSPACE INCADVANCED SYSTEMS OPN /ASO/ |
| 10243909 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 202-57-1 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| URF-A3 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5325-00-027-8719
| Characteristic | Specifications |
|---|---|
| TURNLOCK RECEPTACLE STYLE | 0 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.625 INCHES NOMINAL |
| RECEPTACLE OVERALL LENGTH | 0.938 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.344 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.375 INCHES NOMINAL |
| MOUNTING STYLE | 3 PLAIN |
| COUNTERSINK ANGLE IN DEG | 82.000 |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
