NSN 5325-00-023-6011

Part Details | PANEL FASTENER INSERT

5325-00-023-6011 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Alternate Parts: S196F251, S196F25-1, S196F251, S196F25-1, 5325-00-023-6011, 00-023-6011, 5325000236011, 000236011

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53MAY 01, 196800-023-601137444 ( INSERT, PANEL FASTENER )
REFERENCE DRAWINGS & PICTURES

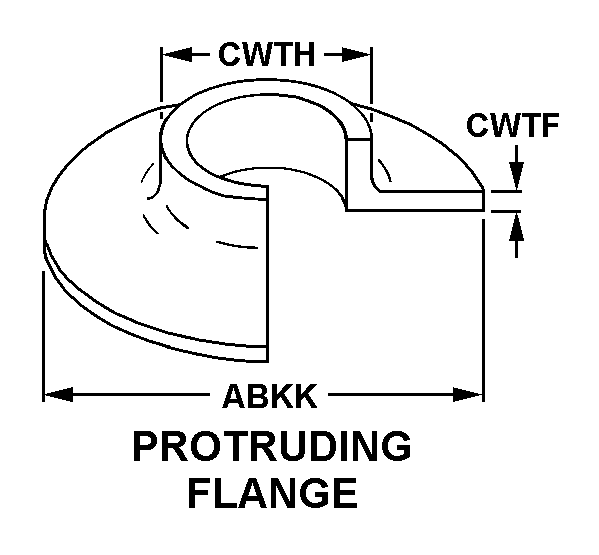

PROTRUDING FLANGE

INSERT,PANEL FASTEN | 5325-00-023-6011, 000236011
Cross Reference | NSN 5325-00-023-6011
Part Number Cage Code Manufacturer
S196F25-183324ARCONIC GLOBAL FASTENERS & RINGS,INC.
S196F25-129372ARCONIC GLOBAL FASTENERS & RINGS,INC.
Technical Data | NSN 5325-00-023-6011
Characteristic Specifications
INSERT STYLE PROTRUDING FLANGE
FLANGE DIAMETER0.750 INCHES NOMINAL
FLANGE THICKNESS0.023 INCHES NOMINAL
BODY DIAMETER0.403 INCHES NOMINAL
HOLE TYPE PLAIN
HOLE DIAMETER0.250 INCHES NOMINAL
FEATURES PROVIDED GROMMET
SPECIAL FEATURES0.406 IN. LG
