NSN 5320-00-058-9869
Part Details | TUBULAR RIVET
5320-00-058-9869 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Alternate Parts: 846176930, M116, M116, M116, M116, MS1653697, MS16536-97, 40802X0.438, M2057C, M116, M116, 5320-00-058-9869, 00-058-9869, 5320000589869, 000589869
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-058-9869 | 00863 ( RIVET, TUBULAR ) |
REFERENCE DRAWINGS & PICTURES

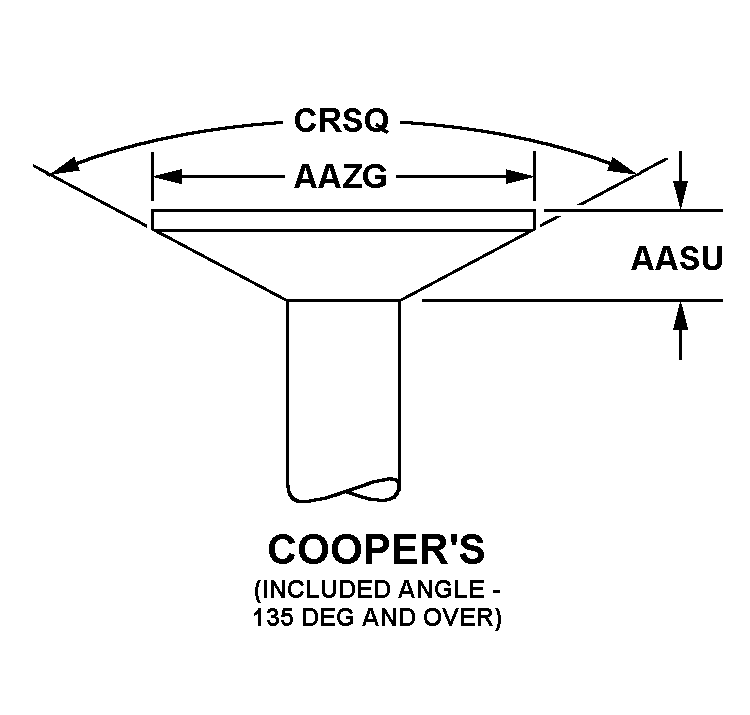

COOPER'S (INCLUDED ANGLE - 135 DEG AND OVER)
TUBULAR
Cross Reference | NSN 5320-00-058-9869
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 846176930 | 09605 | BOMAG USASUB OF UNITED DOMINION INDUSTRIES |
| M116 | 12603 | CLARK EQUIPMENT CO |
| M116 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| M116 | 59690 | KOEHRING COLORAIN DIV |
| M116 | 8E499 | KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO |
| MS16536-97 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 40802X0.438 | 61007 | TEXTRON INCTOWNSEND DIV |
| M2057C | 61208 | TWIN DISC INCORPORATED |
| M116 | 61208 | TWIN DISC INCORPORATED |
| M116 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
Technical Data | NSN 5320-00-058-9869
| Characteristic | Specifications |
|---|---|
| SHEAR STRENGTH | 36000 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | COOPER'S (INCLUDED ANGLE - 135 DEG AND OVER) |
| HEAD HEIGHT | 0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.289 INCHES MINIMUM AND 0.303 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 148.0 DEGREES MINIMUM AND 150.0 DEGREES MAXIMUM |
| SHANK STYLE | TUBULAR |
| FASTENER LENGTH | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| HOLE DIAMETER | 0.099 INCHES MINIMUM AND 0.104 INCHES MAXIMUM |
| SHANK DIAMETER | 0.141 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| HOLE DEPTH | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
