NSN 5320-00-024-3670
Part Details | BLIND RIVET
5320-00-024-3670 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Alternate Parts: 386061391, 38-606-13-91, 5320-00-024-3670, 00-024-3670, 5320000243670, 000243670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 15, 1972 | 00-024-3670 | 00864 ( RIVET, BLIND ) |
REFERENCE DRAWINGS & PICTURES
FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)

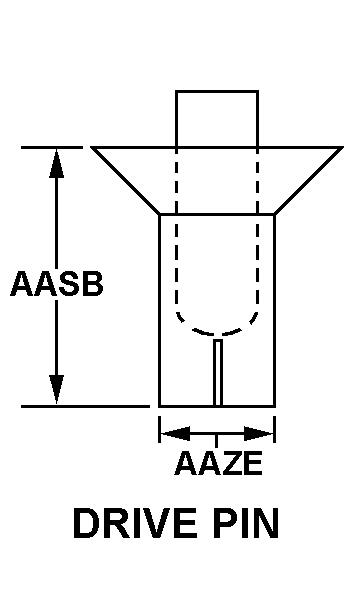

DRIVE PIN
Cross Reference | NSN 5320-00-024-3670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 38-606-13-91 | 94222 | SOUTHCO, INC. |
Technical Data | NSN 5320-00-024-3670
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |
| SHANK STYLE | DRIVE PIN |
| HEAD MAJOR DIAMETER | 0.339 INCHES NOMINAL |
| COUNTERSINK ANGLE | 78.0 DEGREES NOMINAL |
| FASTENER LENGTH | 0.531 INCHES NOMINAL |
| SHANK DIAMETER | 0.187 INCHES NOMINAL |
| GRIP LENGTH | 0.390 INCHES MINIMUM AND 0.421 INCHES MAXIMUM |
| EXPANSION DEVICE | DRIVE STEM-TYPE H |
