NSN 5320-00-005-6245
Part Details | BLIND RIVET
5320-00-005-6245 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Alternate Parts: AF517032, AF5170-3-2, CCR274SS32, CCR274SS-3-2, CCR274SS32, CCR274SS-3-2, CCR274SS32, CCR274SS-3-2, 5320-00-005-6245, 00-005-6245, 5320000056245, 000056245
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 09, 1972 | 00-005-6245 | 00864 ( RIVET, BLIND ) |
REFERENCE DRAWINGS & PICTURES
BRAZIER

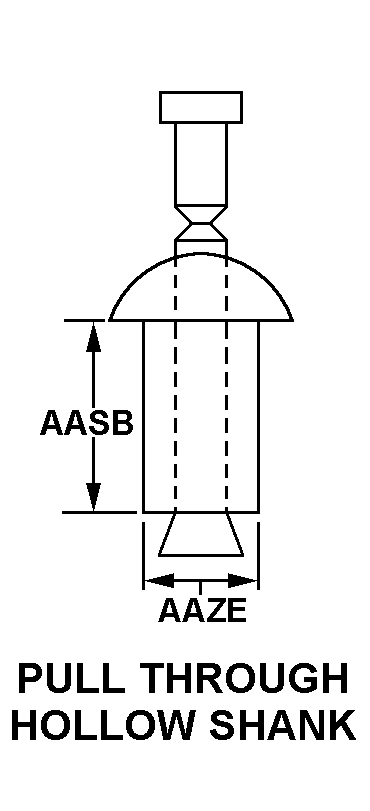

PULL THROUGH HOLLOW SHANK
Cross Reference | NSN 5320-00-005-6245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF5170-3-2 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CCR274SS-3-2 | F7652 | KLX AEROSPACE SOLUTIONS II SAS |
| CCR274SS-3-2 | FB009 | KLX INC |
| CCR274SS-3-2 | 11815 | SPS TECHNOLOGIES, LLCDBA CHERRY AEROSPACE DIV |
Technical Data | NSN 5320-00-005-6245
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | 8 BRAZIER |
| SHANK STYLE | PULL THROUGH HOLLOW SHANK |
| HEAD HEIGHT | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.183 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| FASTENER LENGTH | 0.203 INCHES MAXIMUM |
| SHANK DIAMETER | 0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
