NSN 5315-00-043-0242

Part Details | COTTER PIN

5315-00-043-0242 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Alternate Parts: 24347451, 2434745-1, 5315-00-043-0242, 00-043-0242, 5315000430242, 000430242

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53NOV 27, 196700-043-024202381 ( PIN, COTTER )

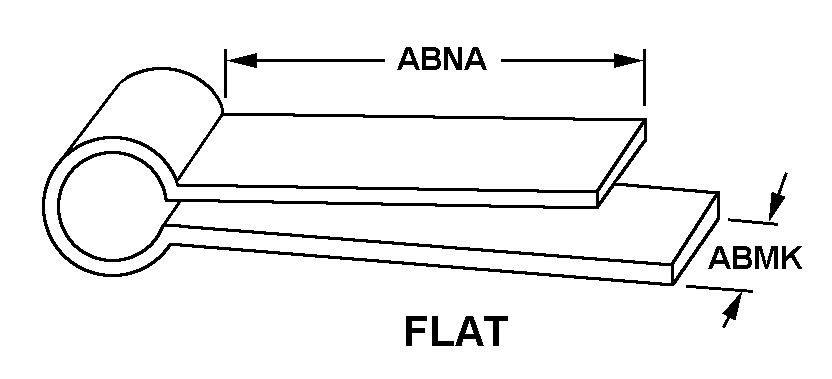

REFERENCE DRAWINGS & PICTURES

FLAT

PIN,COTTER | 5315-00-043-0242, 000430242
Cross Reference | NSN 5315-00-043-0242
Part Number Cage Code Manufacturer
2434745-110001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
Technical Data | NSN 5315-00-043-0242
Characteristic Specifications
STYLE DESIGNATOR FLAT
UNDERLOOP LENGTH1.500 INCHES NOMINAL
SPECIAL FEATURESTESTING IAW MIL-M-19595
CRITICALITY CODE JUSTIFICATIONFEAT
