NSN 5315-00-036-3391
Part Details | MACHINE KEY
5315-00-036-3391 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 5315-00-036-3391, 00-036-3391, 5315000363391, 000363391
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-036-3391 | 02378 ( KEY, MACHINE ) |

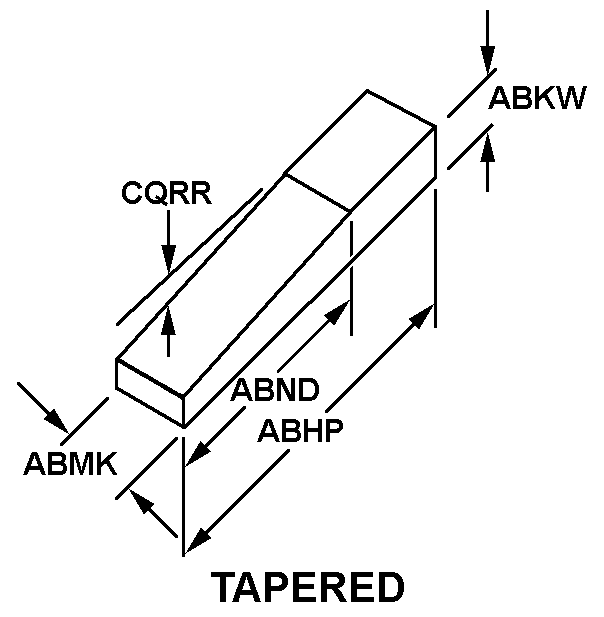

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 5315-00-036-3391
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 5315-00-036-3391
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED |
| OVERALL LENGTH | 3.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| TAPER LENGTH | 0.500 INCHES NOMINAL |
| TAPER | 1.500 PER FOOT IN INCHES |
| MOUNTING HOLE TYPE AND QUANTITY | 1 THREADED |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.375 INCHES |
| MOUNTING HOLE THREAD CLASS | 2B |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 1.469 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.500 INCHES NOMINAL |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.031 INCHES NOMINAL |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
