NSN 5315-00-017-1475
Part Details | HEADLESS GROOVED PIN
5315-00-017-1475 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 5315000171475, 5310000171475, 10875074, 10875074, 5315-00-017-1475, 00-017-1475, 5315000171475, 000171475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 01, 1968 | 00-017-1475 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
SQUARE

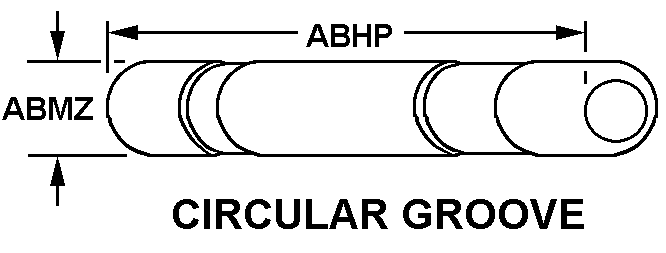

CIRCULAR GROOVE
Cross Reference | NSN 5315-00-017-1475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5315000171475 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 5310000171475 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10875074 | T0720 | FNSS SAVUNMA SISTEMLERI A.S. |
| 10875074 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5315-00-017-1475
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CIRCULAR GROOVE |
| OVERALL LENGTH | 3.719 INCHES NOMINAL |
| DIAMETER | 0.750 INCHES NOMINAL |
| FIRST END STYLE | SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
