NSN 5315-00-011-0223
Part Details | HEADED GROOVED PIN
5315-00-011-0223 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Alternate Parts: 6406201, 6-40620-1, 6406201, 6-40620-1, 5315-00-011-0223, 00-011-0223, 5315000110223, 000110223
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-011-0223 | 02382 ( PIN, GROOVED, HEADED ) |
REFERENCE DRAWINGS & PICTURES

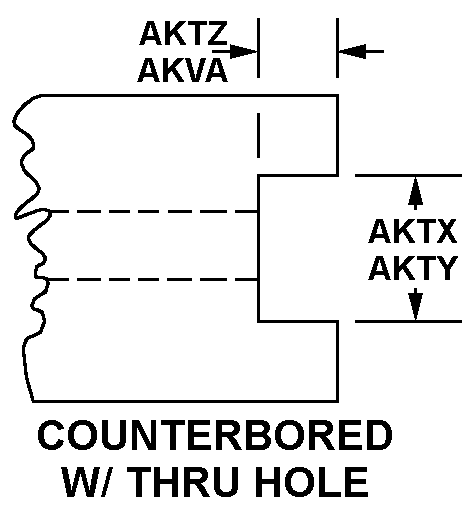

COUNTERBORED W/THRU HOLE
BALL
GROOVE
Cross Reference | NSN 5315-00-011-0223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-40620-1 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 6-40620-1 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES,INC. |
Technical Data | NSN 5315-00-011-0223
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVE |
| DIAMETER | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 0.887 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.187 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.875 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.100 INCHES NOMINAL |
| FIRST END STYLE | COUNTERBORED W/THRU HOLE |
| FIRST END COUNTERBORE DIAMETER | 0.177 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| FIRST END COUNTERBORE DEPTH | 0.270 INCHES NOMINAL |
| HEAD STYLE | 8 BALL |
| PIN HEAD DIAMETER | 0.380 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 60.0 DEGREES NOMINAL |
