NSN 5315-00-010-4876

Part Details | TACK

5315-00-010-4876 A short, sharp-pointed fastening device having a flat or oval head and a cut shank usually less than 1 inch (25.4 mm) in length.

Alternate Parts: FFN103, 5315-00-010-4876, 00-010-4876, 5315000104876, 000104876

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53JAN 01, 196300-010-487629633 ( TACK )
REFERENCE DRAWINGS & PICTURES

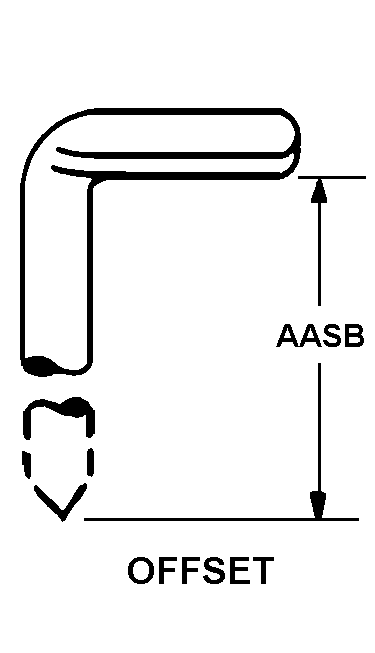

OFFSET

TACK | 5315-00-010-4876, 000104876

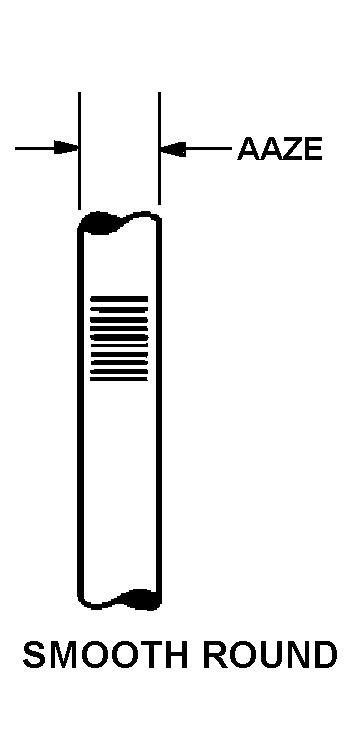

SMOOTH ROUND

TACK | 5315-00-010-4876, 000104876

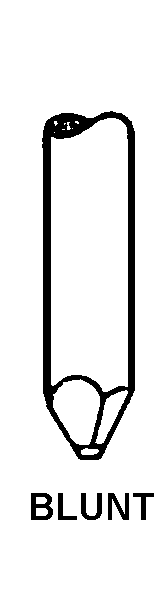

BLUNT

TACK | 5315-00-010-4876, 000104876
Cross Reference | NSN 5315-00-010-4876
Part Number Cage Code Manufacturer
FFN10381348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
Technical Data | NSN 5315-00-010-4876
Characteristic Specifications
MATERIAL STEEL
SURFACE TREATMENT LOCATION OVERALL
FABRICATION METHOD CUT
STERILIZED YES
HEAT TREATMENT COLD WORKED
SHANK STYLE SMOOTH ROUND
SHANK DIAMETER0.047 INCHES NOMINAL
HEAD STYLE9 OFFSET
HEAD DIAMETER0.165 INCHES NOMINAL
POINT STYLE0 BLUNT
FASTENER LENGTH0.313 INCHES NOMINAL
HEAD COLOR BLUE
NONDEFINITIVE SPEC/STD DATA2 TYPE AND 10 STYLE
