NSN 5315-00-010-3906
Part Details | WOODRUFF KEY
5315-00-010-3906 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Alternate Parts: 910184, 09101841, 0910184-1, 0910184, 2165A, 2165A, S305, C6473, 103906, 103906, Z28, 4420, 10DX263, 10A103906, 103653, 103906, 103906, 103906, 2165A, 9X258, 1A5580, BGAX9A, 103906, B800512014FN43, B8005-12-014FN43, S2308, 403054, S22X8, PL53, 5315-00-010-3906, 00-010-3906, 5315000103906, 000103906
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-010-3906 | 02380 ( KEY, WOODRUFF ) |

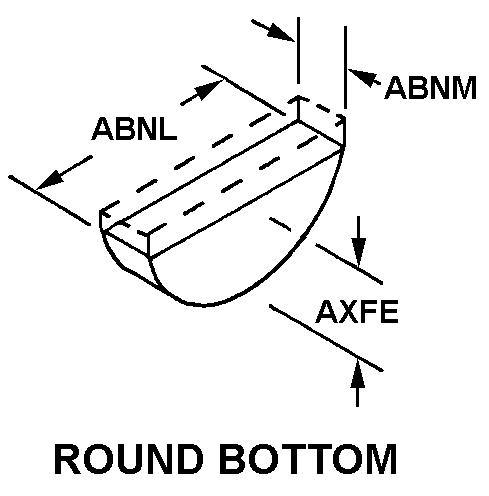

REFERENCE DRAWINGS & PICTURES
ROUND BOTTOM
Cross Reference | NSN 5315-00-010-3906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 910184 | 92392 | ALLIS-CHALMERS CORP |
| 0910184-1 | 92392 | ALLIS-CHALMERS CORP |
| 0910184 | 92392 | ALLIS-CHALMERS CORP |
| 2165A | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 2165A | 72260 | CORBITT CO INC |
| S305 | 15434 | CUMMINS INC. |
| C6473 | 15434 | CUMMINS INC. |
| 103906 | 12204 | DAIMLER CHRYSLER |
| 103906 | 56442 | DIAMOND REO TRUCK CO |
| Z28 | 56442 | DIAMOND REO TRUCK CO |
| 4420 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| 10DX263 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| 10A103906 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| 103653 | 61465 | GARWOOD/FELLER INCGARWOOD WINCH DIV |
| 103906 | 24617 | GENERAL MOTORS CORP |
| 103906 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 103906 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 2165A | 28265 | HERCULES ENGINE CO INC |
| 9X258 | 95201 | NAPCO INTERNATIONAL LLC |
| 1A5580 | 95201 | NAPCO INTERNATIONAL LLC |
| BGAX9A | 00000 | ORDNANCE CORPS |
| 103906 | 1LW55 | REMY, INC. |
| B8005-12-014FN43 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| S2308 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
| 403054 | 65282 | WHITE MOTOR CORP |
| S22X8 | 65282 | WHITE MOTOR CORP |
| PL53 | 66289 | WISCONSIN MOTORS LLC |
Technical Data | NSN 5315-00-010-3906
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND BOTTOM |
| CIRCLE DIAMETER | 0.740 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| THICKNESS | 0.156 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| KEY HEIGHT | 0.308 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| KEY SIZE DESIGNATION | WOODRUFF 8 |
