NSN 5315-00-007-2982
Part Details | QUICK RELEASE PIN
5315-00-007-2982 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Alternate Parts: BLS8T35D, NAS1358DS2S35D, 5315-00-007-2982, 00-007-2982, 5315000072982, 000072982
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 06, 1972 | 00-007-2982 | 08323 ( PIN, QUICK RELEASE ) |

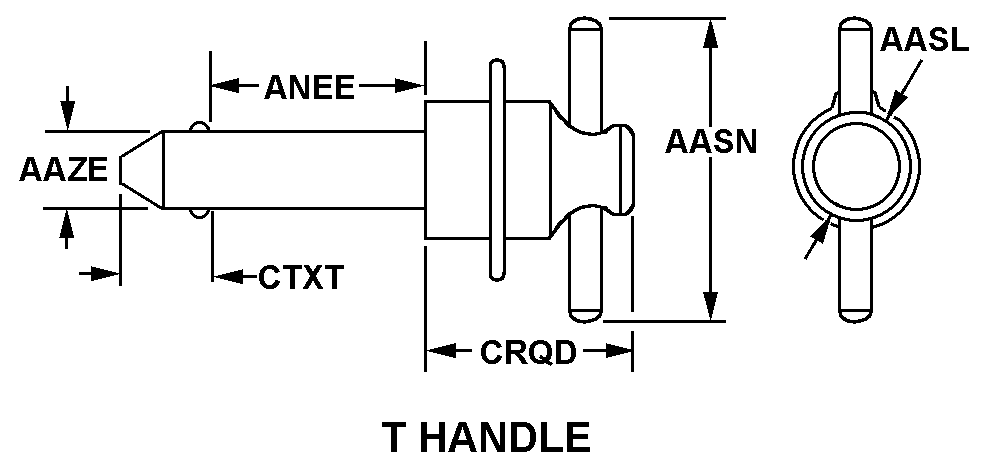

REFERENCE DRAWINGS & PICTURES
T HANDLE
Cross Reference | NSN 5315-00-007-2982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLS8T35D | 84256 | AVIBANK MFG., INC. |
| NAS1358DS2S35D | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5315-00-007-2982
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | T HANDLE |
| HEAD DIAMETER | 0.940 INCHES NOMINAL |
| HANDLE LENGTH | 2.180 INCHES MINIMUM AND 2.500 INCHES MAXIMUM |
| SHANK DIAMETER | 0.4970 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM |
| GRIP LENGTH | 3.500 INCHES MINIMUM AND 3.520 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 2.180 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.590 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK |
| FEATURES PROVIDED | DRIVE OUT FEATURE |
| SPECIFICATION/STANDARD DATA | 80205-NAS1358 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
