NSN 5315-00-006-8233
Part Details | MACHINE KEY
5315-00-006-8233 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 543111, 5315-00-006-8233, 00-006-8233, 5315000068233, 000068233
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 28, 1972 | 00-006-8233 | 02378 ( KEY, MACHINE ) |

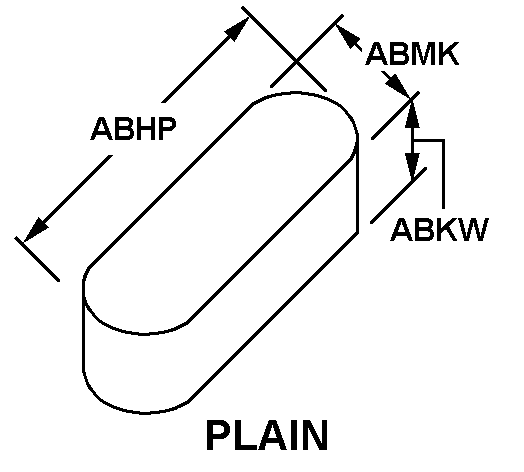

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 5315-00-006-8233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 543111 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
Technical Data | NSN 5315-00-006-8233
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN |
| OVERALL LENGTH | 1.995 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| STARTING EDGE SHAPE | STRAIGHT |
