NSN 5310-00-006-8184
Part Details | CONVEX WASHER
5310-00-006-8184 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is raised to form a curved or spherical contour. See also WASHER (1), CONCAVE. Excludes BEARING, WASHER THRUST.
Alternate Parts: 4M120D5, 5310-00-006-8184, 00-006-8184, 5310000068184, 000068184
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 06, 1972 | 00-006-8184 | 15931 ( WASHER, CONVEX ) |
REFERENCE DRAWINGS & PICTURES

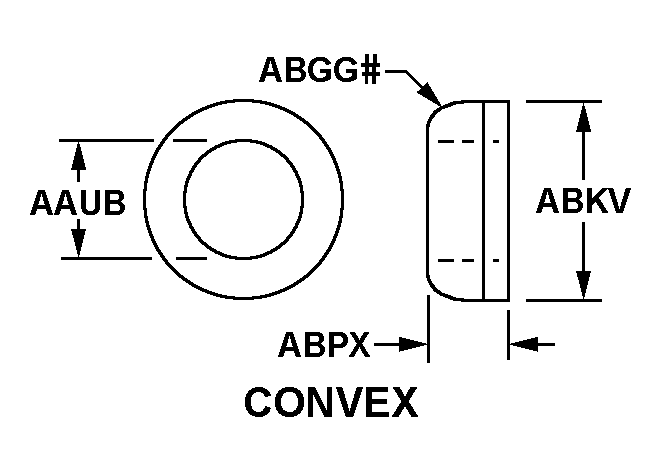

CONVEX
Cross Reference | NSN 5310-00-006-8184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M120D5 | 76301 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5310-00-006-8184
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONVEX |
| HOLE DIAMETER | 0.157 INCHES MINIMUM AND 0.161 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.253 INCHES MINIMUM AND 0.261 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.041 INCHES NOMINAL |
