NSN 5310-00-001-4648
Part Details | FLAT WASHER
5310-00-001-4648 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Alternate Parts: A51P6072315, A51P60723-15, A51P6072315, A51P60723-15, 5310-00-001-4648, 00-001-4648, 5310000014648, 000014648
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 27, 1972 | 00-001-4648 | 13393 ( WASHER, FLAT ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

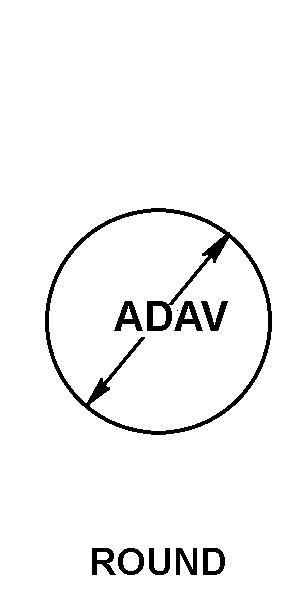

ROUND
ROUND
Cross Reference | NSN 5310-00-001-4648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A51P60723-15 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| A51P60723-15 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
Technical Data | NSN 5310-00-001-4648
| Characteristic | Specifications |
|---|---|
| HOLE DIAMETER | 0.515 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | ROUND |
| OVERALL DIAMETER | 0.890 INCHES MINIMUM AND 0.915 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | ROUND |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| THICKNESS | 0.135 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-I-6866 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
